Double Pole Voltage Transformer
UGZCAK D1

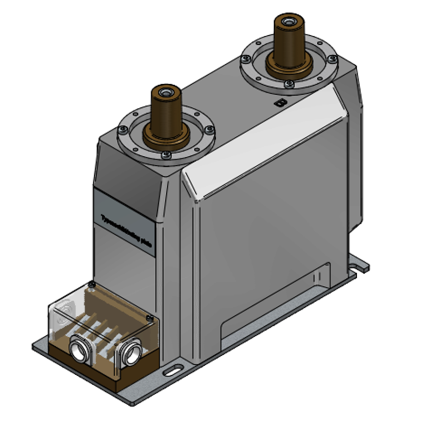

The UGZCAK D1 is a cast-resin insulated metal-coating indoor double-phase voltage transformer suitable for medium voltage switchgears.
1,2 kV .. 11kV, other options available on request
100V, 110V, 230V, other options available on request
As required
“We are the international manufacturer of measuring, revenue metering and protection transformers for energy generation, energy transport and distribution, energy accounting and energy management. Please contact me for the best solution for you.”
Wim van Turennout, Key Account Manager
+31 (0)521 533 313
Order specifications
For the customized design of your ELEQ UGZCAK D1 voltage transformer the following information is required:
Mandatory
• Rated primary voltage
• Rated secondary voltage
• Rated output
• Accuracy class
• Frequency
Optional
• Other relevant requirements
Mandatory
• Rated primary voltage
• Rated secondary voltage
• Rated output
• Accuracy class
• Frequency
Optional
• Other relevant requirements
General Technical Specifications
This product is designed to be safe under the following conditions:
Environmental conditions
Indoor use
100V, 110V, 230V, other options available on request
500VA
Application conditions
IEC 61869-3 / IEEE C57.13; GOST 1983-2001 etc.
1,2 x Un continuous
Max. 12/28/75kV
50/60Hz
E
1,2 kV .. 11kV, other options available on request
As required
Screw terminals M5 (max. 2,5Nm)
As required
