ELEQ’s connection boxes for lighting applications have proven their reliability for many years. The connection boxes assure a compact, safe solution for easily connecting the underground cable to provide objects in public areas with power supply.
Connection boxes for public areas
- ø 99

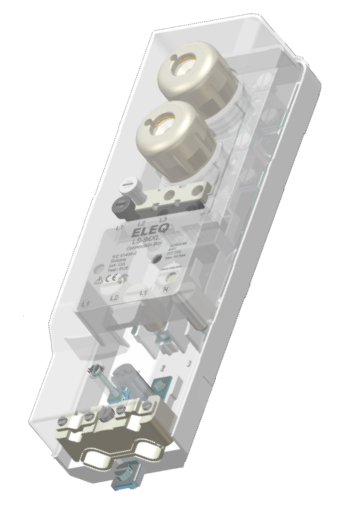

LS-99 5L0409-6AConnection box with which the phases to be used can easily be reversed using a pin.2 x E27/DII2 cables (5 x 16 mm2)Phase selectable - ø 84
LS-84 5L1101Extra safe connection box in which the neutral can be quickly disconnected using a neutral separator in case of mains pollution.2 x E14/D0I2 cables (5 x 16 mm2)Neutral disconnector - ø 84
LS-84 5L1203Extra safe connection box in which the neutral can be quickly disconnected using a neutral separator in case of mains pollution.3 x E14/D012 cables (5 x 16 mm2)Neutral disconnector - ø 84
LS-84 5L1301Extra safe connection box in which the neutral can be quickly disconnected in case of mains pollution. Also, the phases are selectable.1 x E14/D012 cables (5 x 16 mm2)Neutral disconnector - ø 94

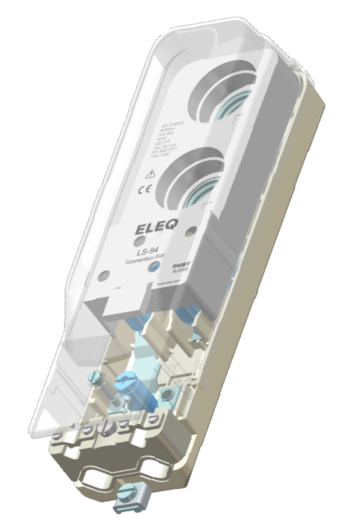

LS-94 5L2302The market standard in the Netherlands for connecting public lighting with an earth-neutral connection.2 x E27/DII2 cables (5 x 10 mm2) or 3 cables (5 x 6mm2)Dutch market standard - ø 94

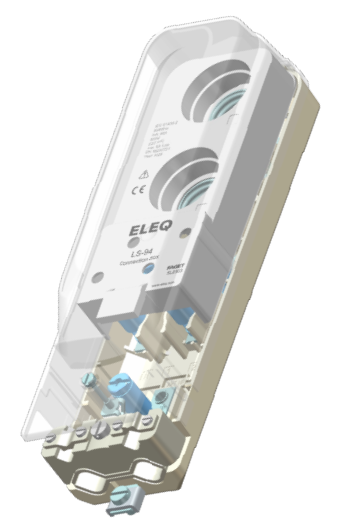

LS-94 5L2303The market standard in the Netherlands for connecting public lighting.2 x E27/DII2 cables (5 x 10 mm2) or 3 cables (5 x 6mm2)Dutch market standard - ø 94

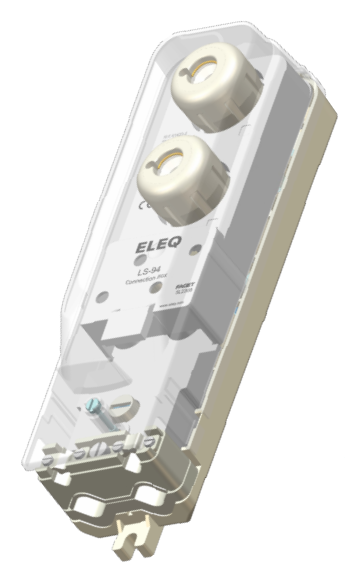

LS-94 5L2308For grids with double insulation. After installation, the box is completely safe to touch.2 x E27/DII2 cables (5 x 10 mm2) or 3 cables (5 x 6mm2)Double insulated - ø 94

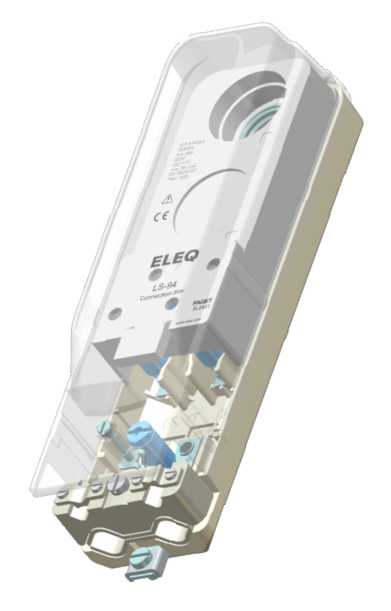

LS-94 5L2401Connection box with a single fuse for connecting public lighting armatures.1 x E27/DII2 cables (5 x 10 mm2) or 3 cables (5 x 6mm2)Basic connection box - ø 94

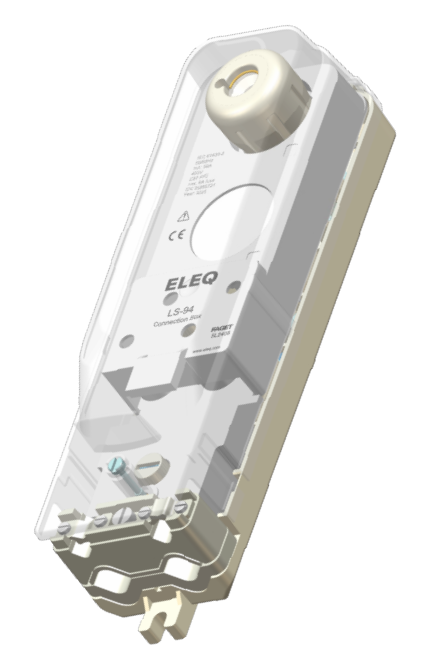

LS-94 5L2408For grids with double insulation. After installation, the box is completely safe to touch.1 x E27/DII2 cables (5 x 10 mm2) or 3 cables (5 x 6mm2)Double insulated - ø 94

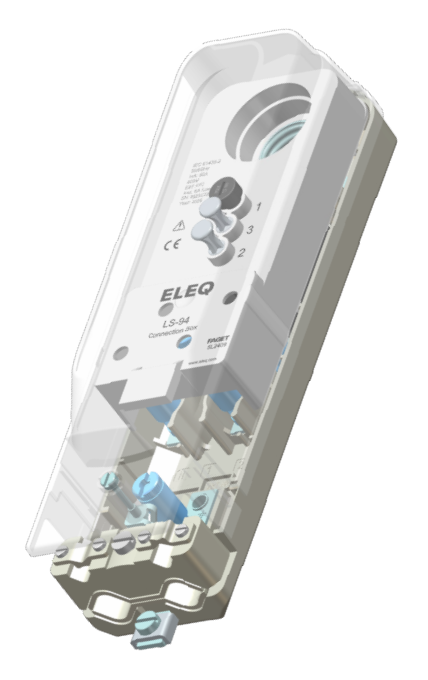

LS-94 5L2409Connection box with which the phases to be used can easily be reversed using a pin.1 x E27/DII2 cables (5 x 10 mm2) or 3 cables (5 x 6mm2)Phase selectable - ø 94
LS-94 5L2411With surge protection to extend the service life of the electronics in public areas.1 x E27/DII2 cables (5 x 10 mm2) or 3 cables (5 x 6mm2)Surge Protection - ø 94
LS-94 5L2501Connection box with Philips Dynadimmer for dimming public lighting.1 x E27/DII2 cables (5 x 10 mm2) or 3 cables (5 x 6mm2)Dynadimmer - ø 84
LS-84 5L3250Standard in Belgium.3 x 10*382 cables (5 x 16 mm2)Earth-K1 connection - ø 84
LS-84 5L4152For grids with double insulation. After installation, the box is completely safe to touch.2 x E14/D012 cables (4 x 16 mm2)Double insulated - ø 84
LS-84 5L4153For grids with double insulation. After installation, the box is completely safe to touch.3 x E14/D012 cables (4 x 16 mm2)Double insulated - ø 84
LS-84 5L4211For grids with double insulation. With surge protection to extend the life of the electronics in public areas.1 x E14/D012 cables (4 x 16 mm2)Double insulated - ø 84
LS-84 5L4248For grids with double insulation. Connection box with which the phases to be used can easily be reversed using a pin.1 x E14/D012 cables (4 x 16 mm2)Double insulated - ø 78
LS-74 5L5001Narrow connection box suitable for mounting in thin lampposts.1 x E27/DII1 cable (5 x 10 mm2) or 2 cables (5 x 6mm2)For small lighting poles - ø 74
LS-74 5L5103Narrow connection box suitable for mounting in thin lampposts.1 x E14/D011 cable (5 x 10 mm2) or 2 cables (5 x 6mm2)For small lighting poles - ø 94
LS-94 5L6003Connection box with 2x DIN rails to be equipped as desired.xxEmpty box - ø 74
LS-74 5L6015Connection box with a self-reclosing earth fault device.1 x 10*381 cable (5 x 6 mm2) or 2 cables (5 x 2,5mm2)Earth fault relay - ø 99
LS-99 5L6018AFor grids with double insulation. Extra strong connection box suitable for the installation of various DIN rail components.3 x 5x251 cable (3 x 16 mm2) or 2 cables (1 x 6mm2) or 2 cables (1 x 10mm2)Double insulated - ø 110
LS-110 5L6023For switching lampposts connected to the low-voltage grid with a 230 V switching wire. The Elster TF receiver is not programmed.3 x 10*382 cables (4 x 10 mm2) or 3 cables (4 x 6mm2)Ripple Control receiver - ø 99
LS-99 5L6026For switching lampposts connected to the low-voltage grid with a 230 V switching wire. The Elster TF receiver is programmed according to instructions.1 x 10*382 cables (4 x 6mm2)Ripple Control receiver - ø 99
LS-99 5L6027For switching lampposts connected to the low-voltage grid with a 230 V switching wire. The Landis and Gyr TF receiver is programmed according to the desired programme.1 x 10*382 cables (4 x 6mm2)Ripple Control receiver - ø 99
LS-94 5L6036Connection box for connecting traffic control installations.3 x 5x251 cable (5 x 6mm2)Public transport and traffic regulation installation combined - ø 110
LS-110 5L6037For compactly connecting electrical street furniture. Can be retrofitted with 1 phase kWh meter.1 x 10*382 cables (5 x 16mm2)Basic connection box - ø 110
LS-110 5L6039For compactly connecting and metering (1 phase) electrical street furniture.1 x 10*382 cables (5 x 16mm2)ABB kWh meter, 1 phase - ø 110
LS-110 5L6040For compactly connecting electrical street furniture. Can be retrofitted with 3 phase kWh meter.3 x 10*381 cable (5 x 10mm2)Basic connection box - ø 110
LS-110 5L6041For compactly connecting and measuring (3 phases) electrical street furniture.3 x 10*381 cable (5 x 10mm2)ABB kWh meter, 3 phase - ø 99
LS-99 5L6050Connection box for connecting lampposts to DC.x2 cables (5 x 16mm2)For DC - ø 99
LS-99 5L6090For quick and easy connection and disconnection of the electricity grid for temporarily removable lampposts.2 x 10*382 cables (5 x 16mm2)Pluggable - ø 110
LS-110 5L6139For compactly connecting and metering (1 phase) electrical street furniture. Delivered without meter.1 x 10*381 cable (5 x 10mm2)Pre-wired for kWh meter (1 phase) - ø 110
LS-110 5L6141For compactly connecting and measuring (3 phases) electrical street furniture. Delivered without meter.3 x 10*382 cables (5 x 16mm2)Pre-wired for kWh meter (3 phase) - ø 100
LS-100 5L8001Extra strong connection box suitable for installation in a stainless steel box, in a lamppost and for outdoor installation.3 x 10*382 cables (5 x 16mm2)IP55 - ø 108
LS-100 5L8005-hExtra strong connection box suitable for installation in a stainless steel box, in a lamppost and for outdoor installation.x2 cables (5 x 16mm2)Double insulated - ø 100
LS-100 5L8008For grids with double insulation. Extra strong connection box suitable for installation in a stainless steel box, in a lamppost and for outdoor installation.3 x 10*382 cables (5 x 25mm2)Double insulated - ø 110
LS-100 5L8012For grids with double insulation. Extra strong connection box suitable for the installation of various DIN rail components.x2 cables (5 x 16mm2)Double insulated - ø 100
LS-100 5L8020For grids with double insulation. Extra strong connection box suitable for installation in a stainless steel box, in a lamppost and for outdoor installation.x2 cables (5 x 16 mm2) or 3 cables (5 x 16mm2)Double insulated - ø 116
LS-100 5L8025Extra strong connection box with a standard fuse for the light armature and a wall socket for earth leakage.2 x E27/DII2 cables (5 x 16mm2)Earth leakage circuit breaker - ø 116
LS-100 5L8026For grids with double insulation. After installation, the box is completely safe to touch.1 x 10*382 cables (5 x 16mm2)Double insulated - ø 100
LS-100 5L8028Connection box for deviating switching regimes for double-insulated grids.x2 cables (5 x 16mm2)Double insulated - ø 100
LS-100 5L8052For grids with double insulation. Extra strong connection box suitable for installation in a stainless steel box, in a lamppost and for outdoor installation.3 x 10*382 cables (5 x 16mm2)Double insulated - ø 100
LS-100 5L8214For grids with double insulation. Extra strong connection box suitable for installation in a stainless steel box, in a lamppost and for outdoor installation.2 x E14/D0I2 cables (5 x 16mm2)Double insulated - ø 106
LS-110 5L6044For compactly connecting electrical street furniture.x2 cables (5 x 16mm2)Circuit breaker 10A C-Characteristic - ø 110
LS-110 5L6080For LED armatures with (too) high Inrush Current.1 x 10*382 cables (5 x 16mm2)Accommodated with Camtec Inrush Current Limiter
2RVS30Stainless steel box to be mounted on the ground against the wall.1x LS-74, LS-84, LS-94On the ground against the wallHole on top 37,5mm
2RVS31Stainless steel box to be mounted on the ground against the wall.1x LS-74, LS-84, LS-94, LS-99, 1x LS-100On the ground against the wallThrough bottom side
2RVS35Double stainless steel box to be mounted on the ground against the wall.2x LS-74, LS-84, LS-94On the ground against the wallHole on top 37,5mm
2RVS35VExtended double stainless steel box to be mounted in sand/ground.2x LS-74, LS-84, LS-94In sand/earthThrough bottom side
2RVS45Stainless steel box to be mounted on the ground against the wall1x LS-74, LS-84, LS-94, LS-100, 1x LS-104On the ground against the wallHole on top 37,5mm
2RVS45VExtended stainless steel box to be mounted on the ground against the wall.1x LS-74, LS-84, LS-94, LS-100, 1x LS-104In sand/earthThrough bottom side
2RVS50Stainless steel box to be mounted in the wall.1x LS-74, LS-84, LS-94To be mounted in the wallTop 2x 25mm. Bottom tube 40 mm.
2RVS60Extended stainless steel box to be mounted in sand/ground.1x LS-74, LS-84, LS-94In sand/earthThrough bottom side
2RVS70Double stainless steel box to be mounted on a concrete foundation.3x LS-74, LS-84, LS-94On concrete foundationThrough bottom side
2RVS80Stainless steel box to be mounted on the wall.1x LS-74, LS-84, LS-94Mounted against the wallProtective tube bottom Ø43x1.5 L=50. Protective tube top Ø25x1.5 L=50.
5RVS13Stainless steel box to be mounted on the ground against the wall1x LS-74, LS-84, LS-94, LS-100, 1x LS-110Mounted against the wall4 holes in rear, ø 6mm
5RVS15Stainless steel box to be mounted on the ground against the wall1x LS-74, LS-84, LS-94, LS-100, 1x LS-110On the ground against the wall4 holes in rear, ø 6mm
5RVS22Double stainless steel box to be mounted on the ground against the wall.2x LS-74, LS-84, LS-94, LS-100, 1x LS-110On the ground against the wall4 holes in rear, ø 6mm
5RVS13FExtended stainless steel box to be mounted in sand/ground.1x LS-74, LS-84, LS-94, LS-100, LS-110In sand/soilIn loose ground. Optional deliverable with bottom plate 500x500mm
5RVS15FExtended stainless steel box to be mounted in sand/ground.1x LS-74, LS-84, LS-94, LS-100, LS-110In sand/soilIn loose ground. Optional deliverable with bottom plate 500x500mm
5RVS22FExtended double stainless steel box to be mounted in sand/ground.2x LS-74, LS-84, LS-94, LS-100, 1x LS-110In sand/soilIn loose ground. Optional deliverable with bottom plate 500x500mm
5L9911Retrofit kit with surge protection to be easily integrated into an LS-84 connection box.Connection Box LS-84Retrofit cap to integrate a Surge Protection Device (SPD) in a LS-84
5L9912Retrofit kit with surge protection to be easily integrated into an LS-94 connection box.Connection Box LS-94Retrofit cap to integrate a Surge Protection Device (SPD) in a LS-94
5L9303Clampmodule for in the LS-94 for connecting applications in the mast next to the light armature.Connection Box LS-84, LS-94This clampmodule provides extra connection possibilities.
FusesE27, E14, 10*38 and 5 x 25 mm fuses for in the connection boxes.Connection Box LS-74, LS-84, LS-94, LS-99, LS-100, LS-104, LS-110Individual fuses
5L9978Strain relief to be mounted in the LS-84.Connection Box LS-84, LS-94, LS-99, LS-110For 3 power cables and 1 armature cable
5L9301LS-99 and LS-110 are easy to hang with a M6 bolt.Connection Box LS-84, LS-94, LS-99, LS-110To hang the connection box
5L9302LS-99 and LS-110 are easy to hang with a M6 bolt.Connection Box LS-84, LS-94, LS-99, LS-110To hang the connection box
5L9950These pliers can be used to bend 16 mm2 wires without damage.Connection Box LS-74, LS-84, LS-94, LS-99, LS-100, LS-104, LS-110Bending cores without damaging
5L9951These pliers can be used to bend 25 mm2 wires without damage.Connection Box LS-74, LS-84, LS-94, LS-99, LS-100, LS-104, LS-110Bending cores without damaging
5L9960To easily open and close the LS-100 connection boxes.Connection Box LS-100To open and close connection boxes
5L9961To easily open and close stainless steel boxes.All stainless steel boxes with triangle key, LS-100To open and close stainless steel boxes
5L9970For the connection between the LS-100 connection box and 2 x 27 mm profile tubeConnection Box LS-100Transition between connection box and profile
5L9971For the connection between the LS-100 connection box and the omega profile 23 x 21 (type 1)Connection Box LS-100Transition between connection box and profile
5L9972For the transition between the LS-100 connection box and the omega profile 37x 26 (type 2)Connection Box LS-100Transition between connection box and profile
