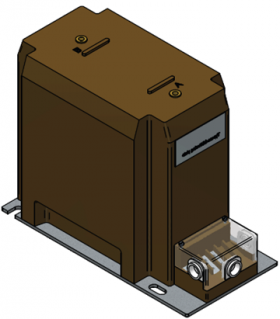

UGZ D2
Double Pole Voltage Transformer
The UGZ D2 is a cast-resin insulated indoor double-phase voltage transformer suitable for medium voltage switchgears. The transformer is able to measure voltage up to 24kV.
Rated primary voltage:7,2kV - 24kV
Secondary voltage:230V
Order specification
| Ratio | Winding 1 | Range | Article number |
|---|---|---|---|
| 6.600 / 230V | 100VA CI.3, Sth: max 1200VA | 7,2kV | 6V1663 |
| 6.000 / 230V | 100VA CI.3, Sth: max 1200VA | 7,2kV | 6V1664 |
| 10.000 / 230V | 100VA CI.3, Sth: max 1200VA | 12kV | 6V2663 |
| 11.000 / 230V | 100VA CI.3, Sth: max 1200VA | 12kV | 6V2664 |
| 20.000 / 230V | 100VA CI.3, Sth: max 750VA | 24kV | 6V4661 |
| 22.000 / 230V | 100VA CI.3, Sth: max 750VA | 24kV | 6V4662 |
General technical specifications
This product is designed to be safe under the following conditions:
Environmental conditions
LocationIndoor use
Ambient air temperature-5°C .. +40°C
Storage and transport temperature-40°C .. +55°C
Relative humidity5% .. 95%, non condensing
AltitudeMax. 1000m above NN; at >1000m data required
Application conditions
StandardIEC 61869-3
Rated voltage factor1,2 x Un continuous
Rated frequency50Hz
Class of insulationE
Rated primary voltage7,2kV - 24kV
Rated secondary voltage230V
Secondary terminalScrew terminals M5 (max. 2,5Nm)
