Generator Voltage Transformer
UGER D2

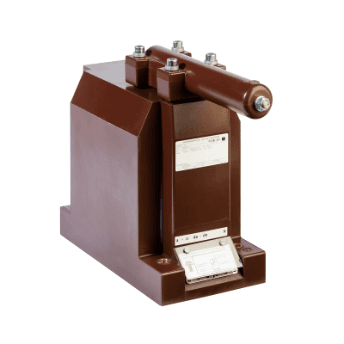

The UGER D2 – optional with fuse – is used for measurement and protection in applications with vibration requirements like power generators. The single pole indoor voltage transformer can be used up to 17,5kV.
15/√3kV
100/√3V or 110/√3V, other options available on request
As required. For example 10, 15 or 30VA
