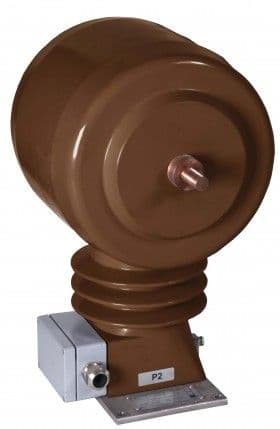

Head-type Current Transformer
IGHSF 24
The IGHSF 24 - head-type current transformer is capable to withstanding the outdoor environmental condition.
10 .. 3000A
1A or 5A, other options available on request
As required. For example 0,2, 0,5, 5P20
“We are the international manufacturer of measuring, revenue metering and protection transformers for energy generation, energy transport and distribution, energy accounting and energy management. Please contact me for the best solution for you.”
Wim van Turennout, Key Account Manager
+31 (0)521 533 313
Order specifications
For the customized design of your ELEQ IGHSF 24 current transformer the following information is required:
Mandatory
•Rated primary current
•Rated secondary current
•Rated output
•Accuracy class
•Frequency
Optional
•Multi-core transformers
•Secondary switch-over
•Alternative primary connections
•Other relevant requirements
Mandatory
•Rated primary current
•Rated secondary current
•Rated output
•Accuracy class
•Frequency
Optional
•Multi-core transformers
•Secondary switch-over
•Alternative primary connections
•Other relevant requirements
General Technical Specifications
This product is designed to be safe under the following conditions:
Environmental conditions
Outdoor use
-40°C .. +50°C, other temperatures on request
5% .. 95%, non condensing
Application conditions
IEC 61869-2/IEEE C57.13, etc.
100 x In/1s, max. 50kA/1s, other duration on request
2,5 x Ith
24/50/125kV
50/60Hz
As required. For example 15VA
Max. 12 terminals, cable gland M25x1,5
