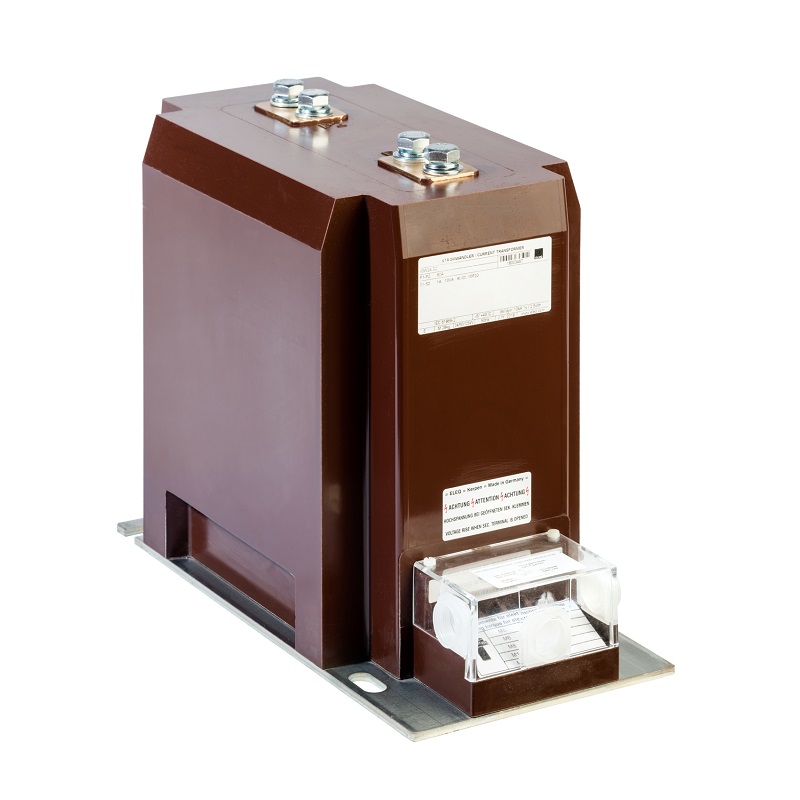

Supporting Type Current Transformer
IGW D3
The IGW D3 is used for measurement and protection in applications. The cast resin insulated indoor supporting-type current transformer can be used up to 36 kV.
5 .. 2500A
1A or 5A, other options available on request
As required. For example 0,2S, 5P10
Our customers expect us to be able to offer them a solution for every challenge. For which challenge are you looking for a solution?
Wim van Turennout, Key Account Manager
+31 (0)6 2039 5494
Order specifications
For the customized design of your ELEQ IGW current transformer the following information is required:
Mandatory
• Rated primary current
• Rated secondary current
• Rated output
• Accuracy class
• Frequency
Optional
• Multi-core transformers are possible
• Primary/secondary switchover
• Secondary terminal box sealable
• Other relevant requirements
General Technical Specifications
This product is designed to be safe under the following conditions:
Environmental conditions
Indoor use
-5°C .. +40°C, other temperatures on request
5% .. 95%, non condensing
Application conditions
IEC 61869-2/IEEE C57.13, etc.
100 x In/1s, max. 50kA/1s
2,5 x Ith, max. 125kA/1s
36/70/170kV
50/60Hz
As required. For example 2,5, 10 or 30VA
M12 (40Nm)
Screw terminals M5 (max. 2,5Nm)
