Max. ø70

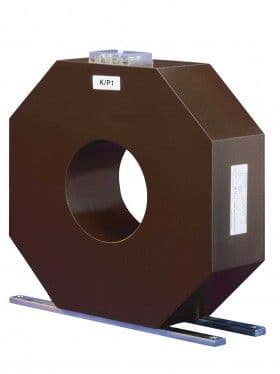

Bushing-type Current Transformer
GSA 120
The GSA120 is a cast-resin insulated bushing-type current transformer for indoor applications. They are suitable to put on cables or bus-bars.
30 .. 1250A
1A or 5A, other options available on request
As required. For example 0,2, 5P20
“From high-end quality stock products to innovative custom-made products. I am available to discuss our possibilities with you.”
Trienke Heinhuis, Inside Sales
+31 (0)521 533 333
Order specifications
For the customized design of your ELEQ GSA Transformer the following information is required:
Mandatory
•Rated primary current
•Rated secondary current
•Rated output
•Accuracy class
•Frequency
Optional
•Multi-core transformers are possible
•Terminal box sealable
•Other relevant requirements
Mandatory
•Rated primary current
•Rated secondary current
•Rated output
•Accuracy class
•Frequency
Optional
•Multi-core transformers are possible
•Terminal box sealable
•Other relevant requirements
General Technical Specifications
This product is designed to be safe under the following conditions:
Environmental conditions
Indoor use
-5°C .. +40°C, other temperatures on request
5% .. 95%, non condensing
Application conditions
IEC 61869-2/IEEE C57.13, etc.
100 x In/1s, max. 100kA/1s, other duration on request
2,5 x Ith
1,2/6/-kV
50/60Hz
As required. For example 10 or 15VA
Screw terminals M5 (max. 2,5Nm)
