ø 84

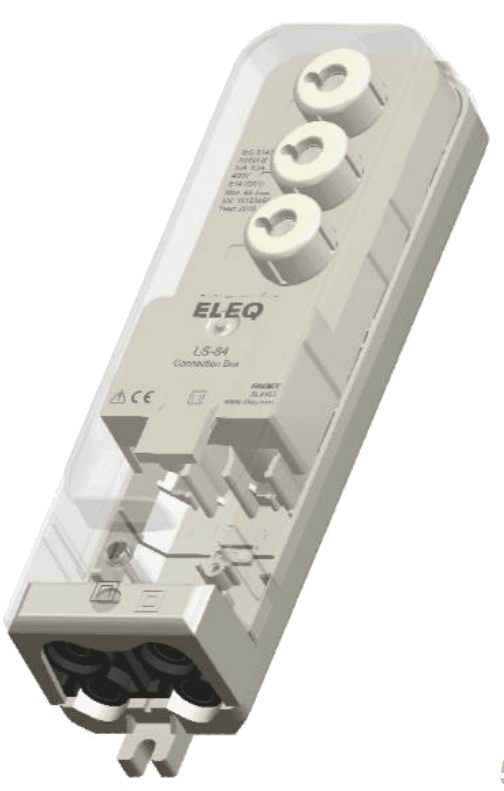

Connection Box

LS-84 5L4164

Name: LS-84 5L4164
Brand: ELEQ
SKU: 5L4164
Availability: InStock

Description

For grids with double insulation. After installation, the box is completely safe to touch. Suitable for lightpoles and stainless steel boxes

Fuses

3 x E14 (D01)

Maximum per terminal

2 cables (2 x 16 mm²)

Details

Double insulated

Ask an offer now

We never go for the simplest solution, but for the best solution, for you, as a customer. Please contact me for the best solution for you.

Wim van Turennout, Key Account Manager

+31 (0)6 2039 5494

[email protected]

General Technical Specifications

This product is designed to be safe under the following conditions:

Model

LS-84

Suitable for minimum mast diameter

84mm

Number of fuses

Fuses included

3x 2A

Fuse type

E14 (D01)

Number of terminals

4 pieces; 3x phase, 1x neutral

Maximum connection per terminal

2 cables (4 cores x 16mm²)

Number of cable cores

Earth-neutral connection

Phase selectable

Double insulated

Yes

Details

Double insulated

Automatic earthing

Downloads

The following downloads are available for this product.

Product sheet 5L4164 (pdf)

Installation Instruction 5L4164 (pdf)

Complementary goods

The following products complement this products in its use.

2RVS50

Stainless steel box to be mounted in the wall.

Suitable for
1x LS-74, LS-84, LS-94

Location
To be mounted in the wall

Connection
Top 2x 25mm. Bottom tube 40 mm.
