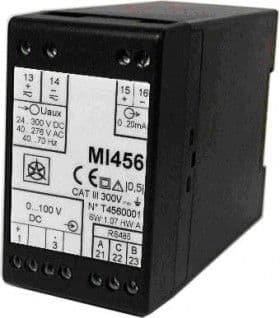

MI456

Universal Measurement Transducer

The MI456 is a measurement transducer that converts DC voltage in to an 4-20mA output signal.

Nominal voltage:50mVac, 24Vdc to 300Vdc
Current Output:1, 5, 10 or 20mA
Auxiliary supply:40-276Vac, 24-300Vdc
MI456

Order specification

Auxiliary supplyMeasuring rangeArticle number
40-276Vac, 24-300Vdc0-40Vdc2R8101
40-276Vac, 24-300Vdc0-60mVdc2R8102
40-276Vac, 24-300VdcVoltage DC per customerspecification (Max 300V)2R8199

General technical specifications

This product is designed to be safe under the following conditions:

Environmental conditions

LocationIndoor use
Power consumption<5VA
Overload1,2xUn continue 2xUn / 10 second
Accuracy class0.5 (IEC 60688)
Output, end value1, 5, 10 or 20mA
Response time<500ms 0-90% & 100-10%
MI456

Downloads for MI456

1Downloads available
Product sheet MI 456 (pdf)
