Due to its specific features, the ELEQ Rogowski is an excellent solution for current measurement and can be used in a wide range of applications where traditional current transformers are not the adequate solution due to size, weight or due to limited access. ELEQ Rogowski coils have a wide range without saturation.
Ratio:1000 A / 100 mV
Class:Class 1-A1 @ 50 Hz
Ø 7 cm
Order specification
| Ratio | Internal diameter | Class | Article number |
|---|---|---|---|
| 1000 A / 100 mV | 70 mm | 1-A1 | 6C4C10F |
General technical specifications
This product is designed to be safe under the following conditions:
Environmental conditions
LocationIndoor use
Ambient air temperature-5°C to +55°C
Storage and transport temperature-35°C to +60°C
AltitudeMax. 2000m above sea-level
Protection degree (secondary terminal)IP41
Application conditions
StandardIEC 61869-10:2017
Frequency10 - 10.000 hz
Accuracy classClass 1-A1 @ 50 Hz
Rated short-time thermal current (Ith)45 kA / 1 s
Continuous thermal current (Icth)3000 A
Rated insulation level0.72/3/- kV
Class of insulationE
Primary window dimensions (mm)Ø 70 mm
Downloads for Rogowski coil
3Downloads available
Talk to sales
We never go for the simplest solution, but for the best solution, for you, as a customer. Please contact me for the best solution for you.
Wim van Turennout, Key Account ManagerComplementary Goods for Rogowski coil
The following products complement this products in its use.
100A - 5000A
Multiscale Rogowski integrator
The multiscale Rogowski integrator is a current converter in a compact DIN rail enclosure. The integrator is provided with a push button for an easy scale selection, offering a wide range of applications with a single coil and integrator.
Ø 7 cm

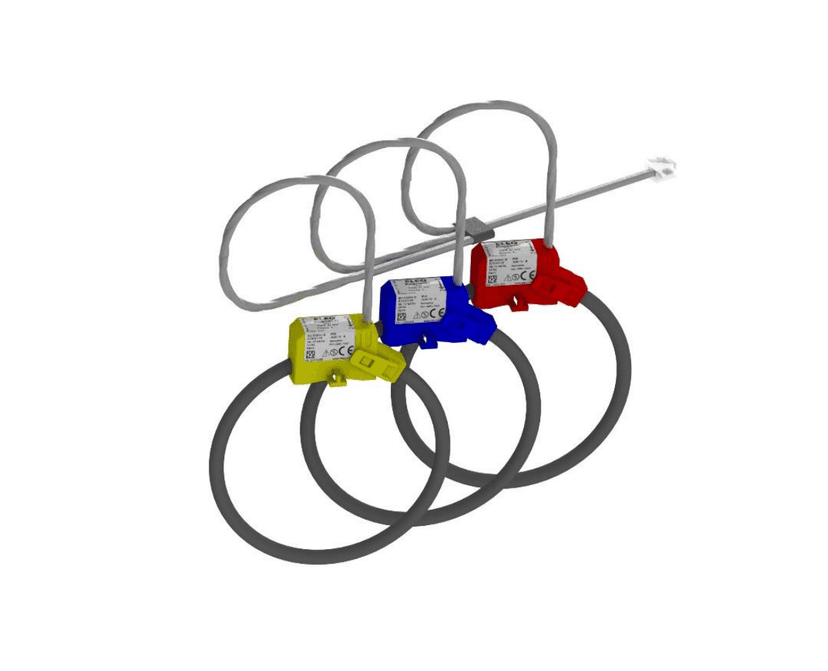

Rogowski coil set
