Summation Transformer
Summation Transformer
The very compact and highly accurate Summation Transformer makes it possible to sum the outputs from 2 or 3 ELEQ TQ split-core transformers to 1 signal to your multi instrument.
Ratio:1+1/1A and 1+1+1/1A
Class:1
Burden:0,2VA
35mm
Order specification
| Burden | Ratio | Class | Article number |
|---|---|---|---|
| 0,2VA | 1+1/1A | 1 | 4D8001 |
| 0,2VA | 1+1+1/1A | 1 | 4D8002 |
General technical specifications
This product is designed to be safe under the following conditions:
Environmental conditions
LocationIndoor use
Ambient air temperature-5°C .. +40°C
Protection degree IP20
Application conditions
StandardIEC 61869-2
Rated short-time thermal current (Ith)60 x In / 1s
Continuous thermal current (Icth)1
Rated insulation level0,72/3/-kV
Rated frequency50/60Hz
Class of insulationE
Secondary leadsSpring Pressure Connector, max 1.5mm2
Downloads for Summation Transformer
1Downloads available
Talk to sales
“We manufacture products with passion and precision which proved their excellence over the years. I would be pleased to discuss our possibilities together.“
Aafje Heinhuis, Inside SalesComplementary Goods for Summation Transformer
The following products complement this products in its use.
ø18

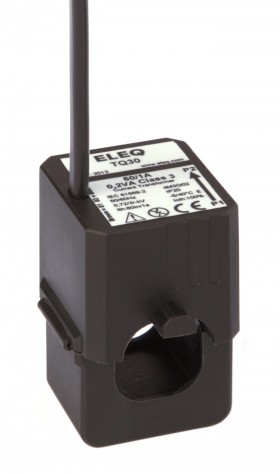

TQ30
The very compact ELEQ TQ30 split-core current transformer is especially designed for connection to digital measurement systems.
ø 18
TQ40-B ../1A
The very compact ELEQ TQ40-B split-core current transformer is especially designed for connection to digital measurement systems.
ø 28
TQ40-C ../1A
The very compact ELEQ TQ40-C split-core current transformer is especially designed for connection to digital measurement systems.
ø 42
TQ50-E ../1A
The very compact ELEQ TQ50-E split-core current transformer is especially designed for connection to digital measurement systems.
2x ø42

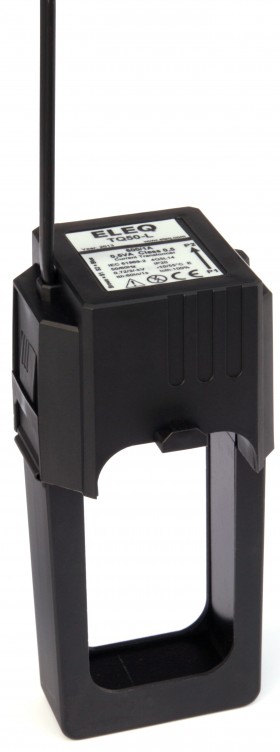

TQ50-L ../1A
