TQ40-B ../1A

Split-core current transformer

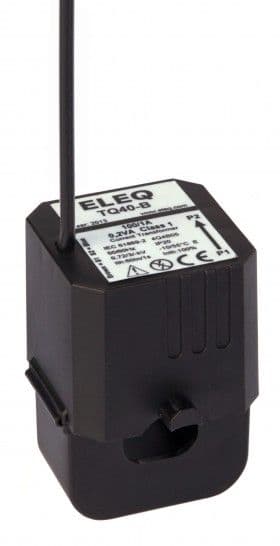

The very compact ELEQ TQ40-B split-core current transformer is especially designed for connection to digital measurement systems.

Ratio:100/1A .. 250/1A
Class:1 or 0,5
Burden:0,2VA
ø 18TQ40-B ../1A

Order specification

BurdenRatioClassEAN CodeArticle number
0,2VA100/1A187164790422374Q4B05
0,2VA125/1A187164790422444Q4B07
0,2VA150/1A187164790422514Q4B08
0,2VA200/1A0.587164790422684Q4B09
0,2VA250/1A0.587164790422754Q4B10

General technical specifications

This product is designed to be safe under the following conditions:

Environmental conditions

LocationIndoor use
Protection degree (secondary terminal)IP20
Only suitable for insulated conductors.

Application conditions

StandardIEC 61869-2
Rated short-time thermal current (Ith)60 x Ipr / 1s
Continuous thermal current (Icth)1
Rated insulation level0,72/3/-kV
Rated frequency50/60Hz
Class of insulationE (120°C)
Primary window dimensions (mm)ø 18
Secondary leads3 meter cable, 0,5 mm2 flexible
Overvoltage categoryCAT IV 600 V
TQ40-B ../1A

Downloads for TQ40-B ../1A

5Downloads available
Product sheet TQ40-B (pdf)
CE certificate TQ40 (pdf)
TQ Secondary leads tool (pdf)
Brochure Energy Management Line (pdf)
Installation Instruction TQ (pdf)
