TQ50-L ../1A

Split-core current transformer

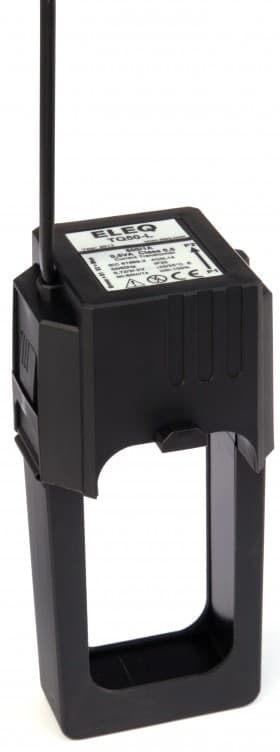

The very compact ELEQ TQ50-L split-core current transformer is especially designed for connection to digital measurement systems.

Ratio:250/1A .. 1000/1A

Class:0,5 or 1 or 3

Burden:0,5VA or 5VA

2x ø42

TQ50-L ../1A

Order specification

Burden	Ratio	Class	EAN Code	Article number
0,5VA	250/1A	1	8716479043135	4Q5M10
0,5VA	300/1A	1	8716479043142	4Q5M11
0,5VA	400/1A	0.5	8716479043159	4Q5M12
0,5VA	500/1A	0.5	8716479043166	4Q5M13
0,5VA	600/1A	0.5	8716479043173	4Q5M14
0,5VA	750/1A	0.5	8716479043180	4Q5M15

Burden	Ratio	Class	EAN Code	Article number
0,5VA	800/1A	0.5	8716479043197	4Q5M16
0,5VA	1000/1A	0.5	8716479043203	4Q5M17
5VA	400/1A	3	8716479043340	4Q5N12
5VA	600/1A	3	8716479043357	4Q5N14
5VA	800/1A	3	8716479043364	4Q5N16
5VA	1000/1A	3	8716479043371	4Q5N17

General technical specifications

This product is designed to be safe under the following conditions:

Environmental conditions

LocationIndoor use

Protection degree (secondary terminal)IP20

Only suitable for insulated conductors.

Application conditions

StandardIEC 61869-2

Rated short-time thermal current (Ith)60 x Ipr / 1s

Continuous thermal current (Icth)1

Rated insulation level0,72/3/-kV

Rated frequency50/60Hz

Class of insulationE (120°C)

Primary window dimensions (mm)2x ø42

Secondary leads5 meter cable, 0,5 mm2 flexible

Overvoltage categoryCAT IV 600 V
