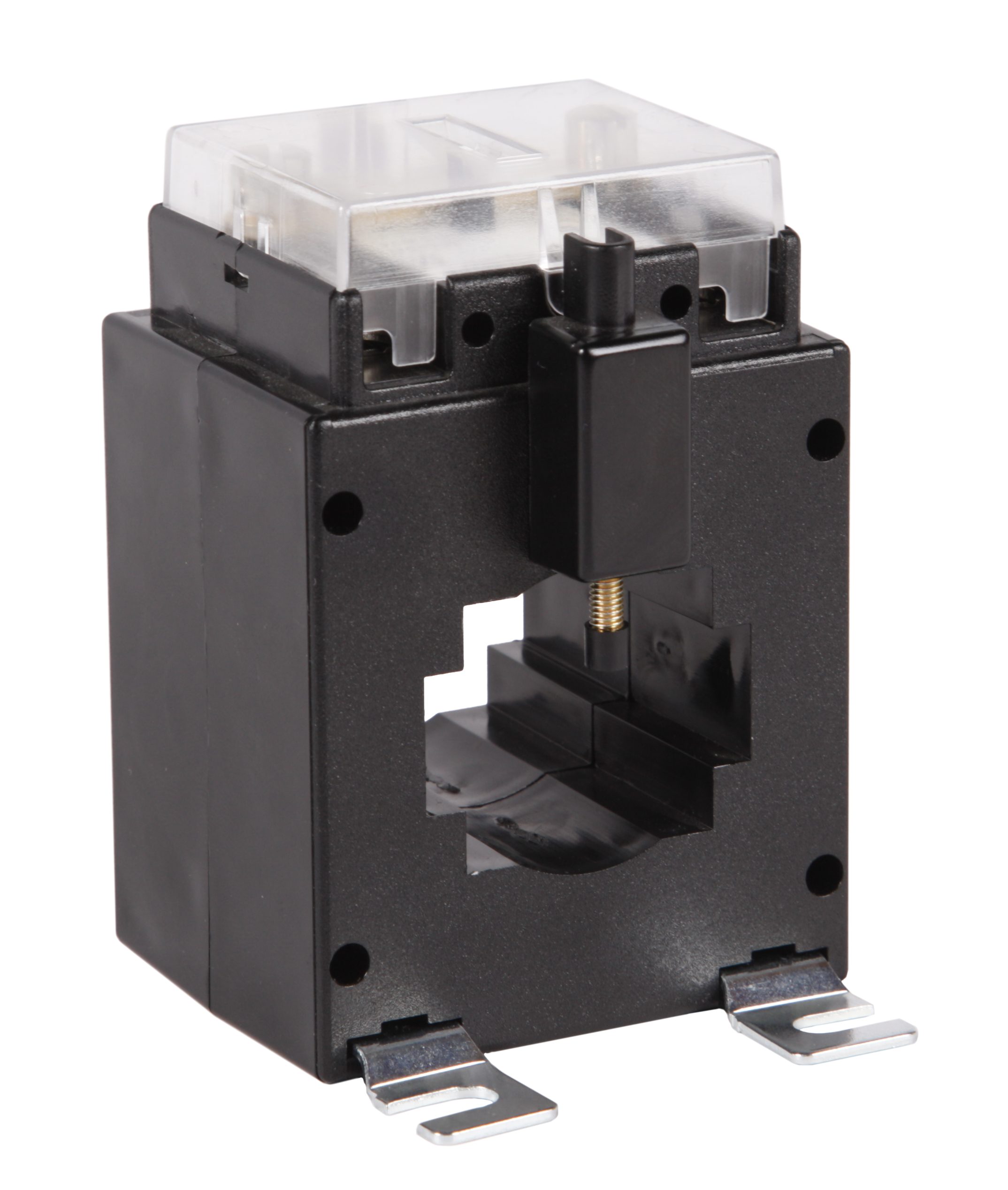

IA85B61K

Low voltage current transformer

These – over the full operational temperature range - accurate current transformers are suitable for measurement and for revenue metering (billing).

Ratio:200/5A .. 1600/5A
Class:0,2S
Burden:0 .. 5 VA
Ø 43 mmIA85B61K

Order specification

ModelRatioBurdenClassArticle number
IA85B61K300/5A0 .. 3,75 VA0,2S4M90K1E
IA85B61K400/5A0 .. 5 VA0,2S4M90K2E
IA85B61K600/5A0 .. 5 VA0,2S4M90K3E
IA85B61K800/5A0 .. 5 VA0,2S4M90K4E
IA85B61K1000/5A0 .. 5 VA0,2S4M90K5E
ModelRatioBurdenClassArticle number
IA85B61K1200/5A0 .. 5 VA0,2S4M90K6E
IA85B61K1600/5A0 .. 5 VA0,2S4M90K7E
IA85B61K1500/5A0 .. 5 VA0,2S4M90K8E
IA85B61K200/5A0 .. 2,5 VA0,2S4M90K9E

General technical specifications

This product is designed to be safe under the following conditions:

Environmental conditions

LocationIndoor use
Ambient air temperature-25°C .. +40°C
Relative humidity5% .. 85%, non condensing
Protection degree IP20

Application conditions

StandardIEC 61869-2
Rated short-time thermal current (Ith)60 x In / 1s
Continuous thermal current (Icth)1 x In
Rated insulation level0,72/3/-kV
Rated frequency50/60Hz
Class of insulationE
Primary window dimensions (mm)Max cable Ø 43 mm. Max rail 60x15mm or 50x30mm or 40x30mm
Secondary leadsScrew terminals (max. torque 2Nm). Max. cross-sectional area of cable (stranded or solid) 6mm²
