Rogowski coil 600A-5000A
Rogowski coil

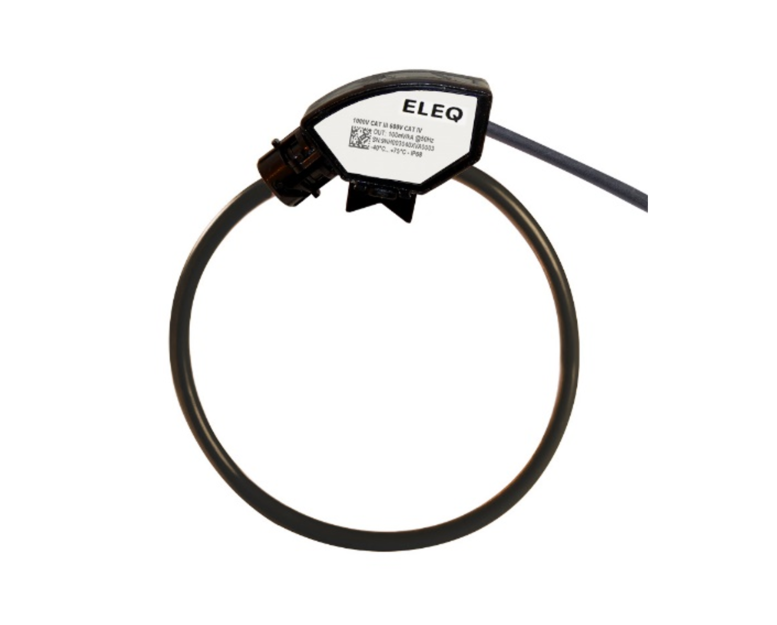

The ELEQ Rogowski coils are flexible current transformers based on the Rogowski principle. Due to its specific features, they are an extremely comfortable solution for current measurement in a wide range of applications where traditional current transformers are not the adequate solution.
Ratio:100mV/1kA
Class:Class 1-A1
Ø 4-15 cm
Order specification
| Ratio | Internal diameter | Max. Measurable Current | Article number |
|---|---|---|---|
| 100mV/1kA | 40 mm | 600 A | 2C4A10 |
| 100mV/1kA | 80 mm | 600 A | 2C4D10 |
| 100mV/1kA | 150 mm | 5000 A | 2C4J10 |
General technical specifications
This product is designed to be safe under the following conditions:
Environmental conditions
LocationOutdoor use
Ambient air temperature-40°C .. +75°C up to 2500A with 150…410 mm coil length; -40°C .. +60°C up to 5000A with 420…500 mm coil length
Storage and transport temperature-40°C .. +90°C
Relative humidity 0% .. 95%
AltitudeMax. 2000m above sea-level
Protection degree (secondary terminal)IP68
Application conditions
StandardIEC 61010-1; IEC 61010-2-032; IEC 60529
Frequency50/60 Hz
Accuracy classClass 1-A1 according to IEC 61869-10
Rated insulation level7400 VRMS / 5s
Primary window dimensions (mm)Ø 40-150 cm
DetailsMax measurable current: 600A…5000A depending on coil length. Check productsheet for more data.
