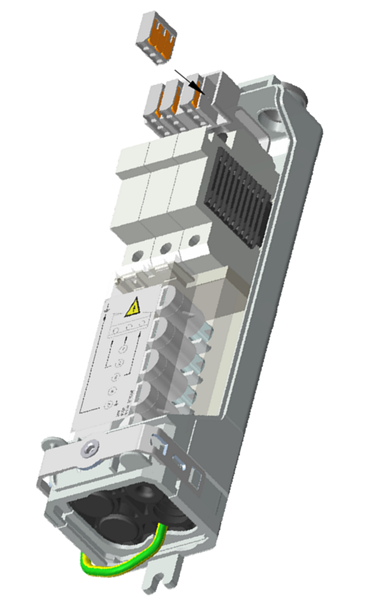

5L8006

Connection Box

Extra strong connection box suitable for installation in a stainless steel box, in a lamppost and for outdoor installation.

Fuses:3 x 10*83
Maximum per terminal:2 cables (5 x 16 mm²)
Details:With clampmodule
ø 1005L8006

General technical specifications

Dit product is veilig te gebruiken onder de volgende omstandigheden:

ModelLS-100
Suitable for minimum mast diameter100mm
Number of fuses3
Fuses includedNo
Fuse type10*83
Number of terminals5 pieces; 3x phase, 1x neutral, 1x Earth
Maximum connection per terminal2 cables (5 cores x 16mm2)

Number of cable cores5
Earth-neutral connectionYes, incl. earth litze
Phase selectableNo
Double insulatedNo
DetailsWith clampmodule
5L8006

Downloads for 5L8006

2Downloads available
Product sheet 5L8006 (pdf)
3D-drawing LS-100 (.stp)
