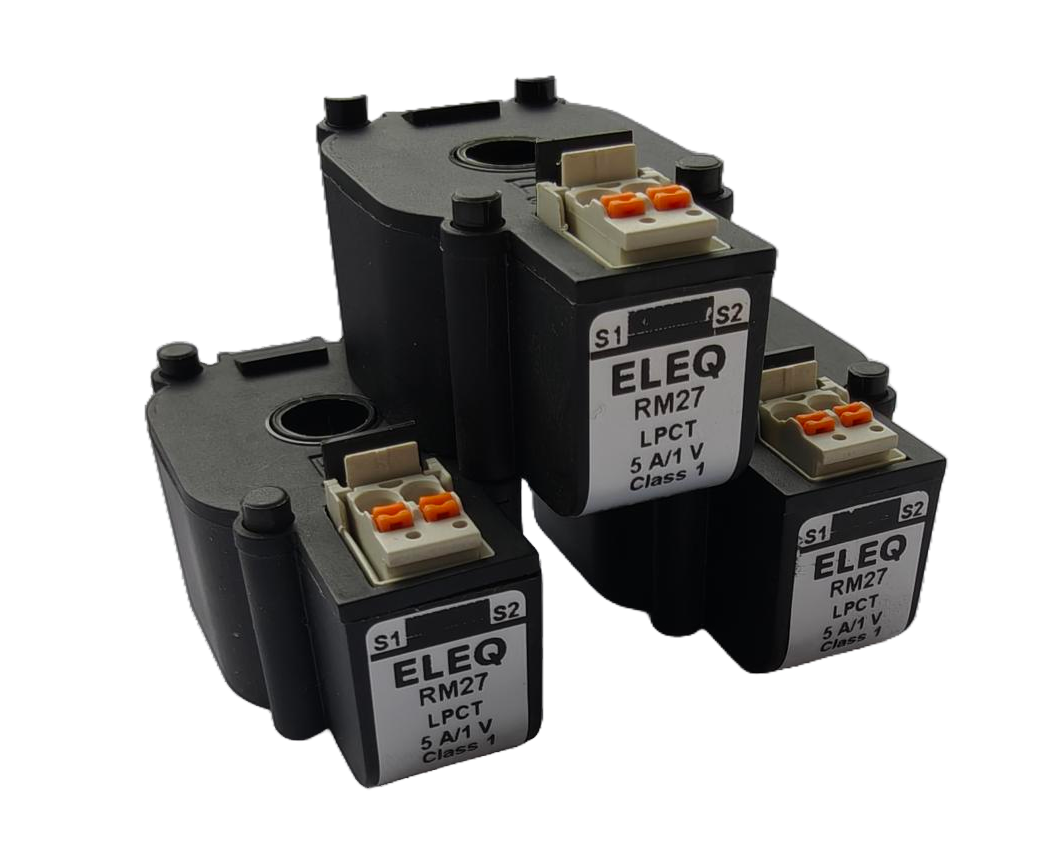

RM27 333mV LPCT
Current transformer
Modern installations increasingly demand detailed current measurement, often with limited available space and for relatively low current values. The ELEQ RM27 current transformer effectively meets these needs within a single, compact design, specifically designed for digital measurement systems.
Ratio:5 A/1 V
Class:1
Burden: 2 MΩ, 50 pF
ø7,5
General technical specifications
This product is designed to be safe under the following conditions:
Environmental conditions
LocationIndoor use
Ambient temperature-10°C .. +55°C
Relative humidity5% .. 85%, non condensing
Protection degree (secondary terminal)IP20
Application conditions
StandardIEC 61869-10
Rated short-time thermal current (Ith)40 x A / 1s
Continuous thermal current (Icth)120%
Rated insulation level0,72/3/-kV
Rated frequency50 Hz
Class of insulationE (+120 °C)
Primary window dimensions (mm)Max. ø 7,5 mm
