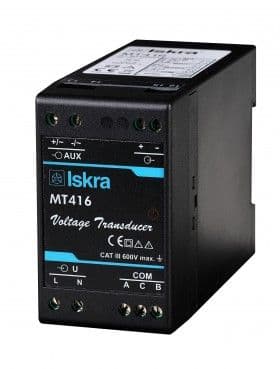

MT416
Universal Measurement Transducer
The MT416 is a freely programmable measurement transducer for measuring and monitoring RMS AC voltage and frequency. The MT416 can be programmed via a USB port.
Nominal voltage:0-600V
Current Output:4-20mA
Auxiliary supply:AC (40-276Vac) or DC (24-300Vdc)
Order specification
| Auxiliary supply | Measuring range | Article number |
|---|---|---|
| AC (40-276Vac) or DC (24-300Vdc) | 0-250V | 2R5001 |
| AC (40-276Vac) or DC (24-300Vdc) | 0-500V | 2R5002 |
| AC (40-276Vac) or DC (24-300Vdc) | Voltage on customer request (max. 600V L-N) | 2R5099 |
| AC (40-276Vac) or DC (24-300Vdc) | 45-55Hz/230V | 2R8201 |
| AC (40-276Vac) or DC (24-300Vdc) | Frequency on customer request (16..400Hz) | 2R8299 |
General technical specifications
This product is designed to be safe under the following conditions:
Environmental conditions
LocationIndoor use
Power consumption< 0,1VA
Nominal frequency50/60, 400Hz
Overload1,2xUn continue 2xUn / 10 second
Accuracy class0.5 (IEC 60688)
Voltage Output0-10mV
Response time0-90% & 100-10%<100ms, frequency300ms
