IGHDF 12

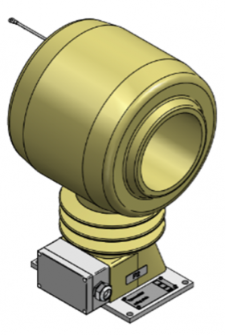

Bushing-type Current Transformer
The IGHDF 12 -bushing-type current transformer is capable to withstanding the outdoor environmental condition.
Primary current:10 .. 5000A
Secondary current:1A or 5A, other options available on request
Accuracy class:As required. For example 0,2, 0,5, 5P20
Ø 155-6
General technical specifications
This product is designed to be safe under the following conditions:
Environmental conditions
LocationOutdoor use
Ambient air temperature-40°C .. +50°C, other temperatures on request
Relative humidity5% .. 95%, non condensing
Application conditions
StandardIEC 61869-2/IEEE C57.13, etc.
Rated short-time thermal current (Ith)100 x In/1s, max. 100kA/1s, other duration on request
RatedDynamicCurrentIdyn2,5 x Ith
Rated insulation level12/28/75kV
Rated frequency50/60Hz
Rated outputAs required. For example 15VA
Secondary terminalMax. 8 terminals, cable gland M25x1,5
