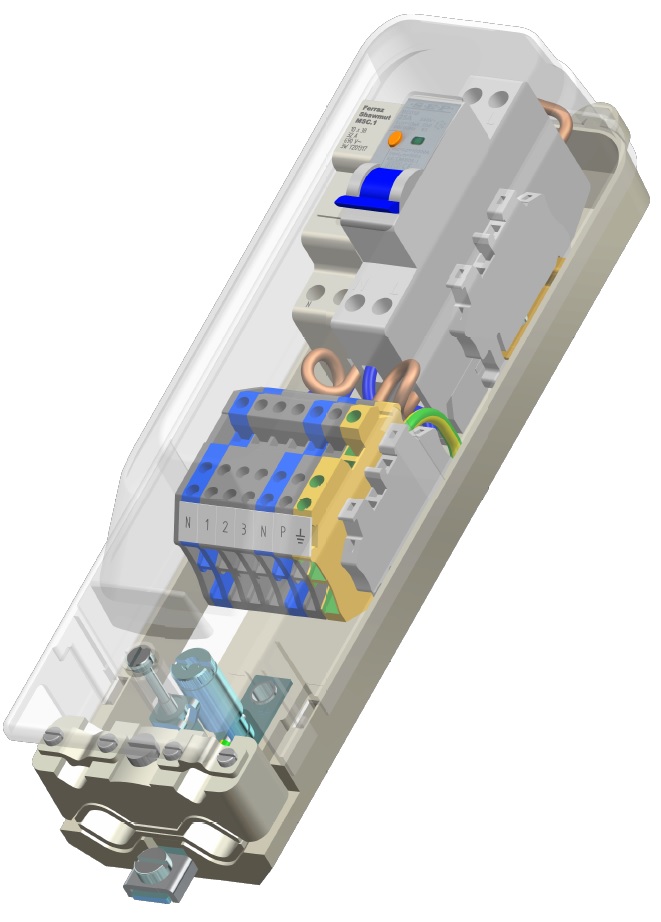

5L6024

Connection Box

For compactly connecting electrical street furniture.

Fuses:Yes, 6,3A
Maximum per terminal:Yes, max. 2 ground cables (23mm) and 2 lightmast cords
Details:Two-pole fuse holder in combination with earth leakage circuit breaker
ø 945L6024

General technical specifications

This product is designed to be safe under the following conditions:

ModelLS-94
Suitable for minimum mast diameter94 mm
Number of fuses1
Fuses included1
Fuse type6,3A
Number of terminals6 pieces 4mm²
Maximum connection per terminalMax. 2 ground cables (23mm) and 2 lightmast cords

Number of cable cores4
Earth-neutral connectionNo
Phase selectableNo
Double insulatedNo
DetailsTwo-pole fuse holder in combination with earth leakage circuit breaker
Automatic earthingYes
5L6024

Downloads for 5L6024

3Downloads available
Product sheet 5L6024 (pdf)
Installation guide 5L6024 (pdf)
3D-drawing LS-94 (.stp)
