5L0409-6A

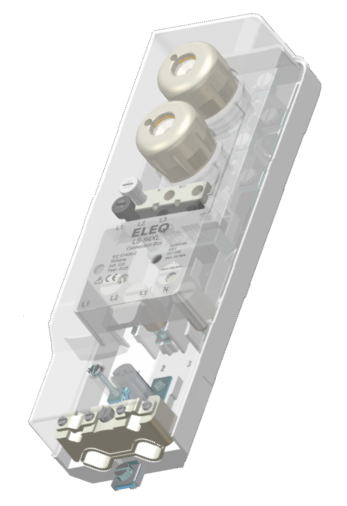

Connection Box

Connection box with which the phases to be used can easily be reversed using a pin.

Fuses:2 x E27/DII
Maximum terminals:2 cables (5 x 16 mm2)
Details:Phase selectable
ø 945L0409-6A

General technical specifications

This product is designed to be safe under the following conditions:

ModelLS-94
Suitable for minimum mast diameter99mm
Number of fuses2
Fuses included2 x 6A
Fuse typeE27/DII
Number of terminals5 pieces; 3x phase, 1x zero, 1x Earth
Maximum connection per terminal2 cables (5 cores x 16mm2)

Number of cable cores5
Earth-neutral connectionNo
Phase selectableYes
Double insulatedNo
DetailsPhase selectable
Automatic earthingYes
EAN Code8716479050959
5L0409-6A

Downloads for 5L0409-6A

3Downloads available
Product sheet 5L0409-6A (pdf)
Installation Instruction LS-94XL (pdf)
3D-drawing LS-94 (.stp)
