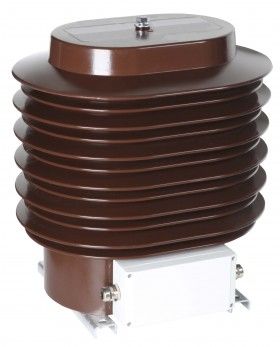

UGEF D26
Outdoor Single Pole Voltage Transformer
The UGEF D26 is used for measurement and/or protection or for residual voltage winding in outdoor applications. The single pole outdoor voltage transformer can be used up to 24kV.
Primary voltage:6/√3kV -22/√3kV
Rated secondary voltage:100/√3V or 110/√3V; other options available on request
Rated output:As required. For example 10, 15, 30VA
General technical specifications
This product is designed to be safe under the following conditions:
Environmental conditions
LocationOutdoor use
Ambient air temperature-25°C .. +40°C; other temperatures on request
Storage and transport temperature-50°C .. +70°C
Relative humidity5% .. 95%, non condensing
AltitudeMax. 1000m above NN; at >1000m data required
Protection degree (secondary terminal)IP54
Application conditions
StandardIEC 61869-3/IEEE C57.13, etc.
RatedThermalLimitingOutputSth500VA measuringwinding100VA residual winding
Rated voltage factor1,9 x Un for 8h; 1,2 x Un continuous
Rated insulation level24/50/125kV
Rated frequency50/60Hz
Class of insulationE
Rated primary voltage6/√3kV -22/√3kV
Rated secondary voltage100/√3V or 110/√3V; other options available on request
Rated outputAs required. For example 10, 15 or 30VA
Primary connectionM10 (20Nm)
Secondary terminalScrew terminals M5 (max. 2,5Nm)
Accuracy classAs required. For example 0,2, 3P
