TQ40-C ../5A

Split-core current transformer

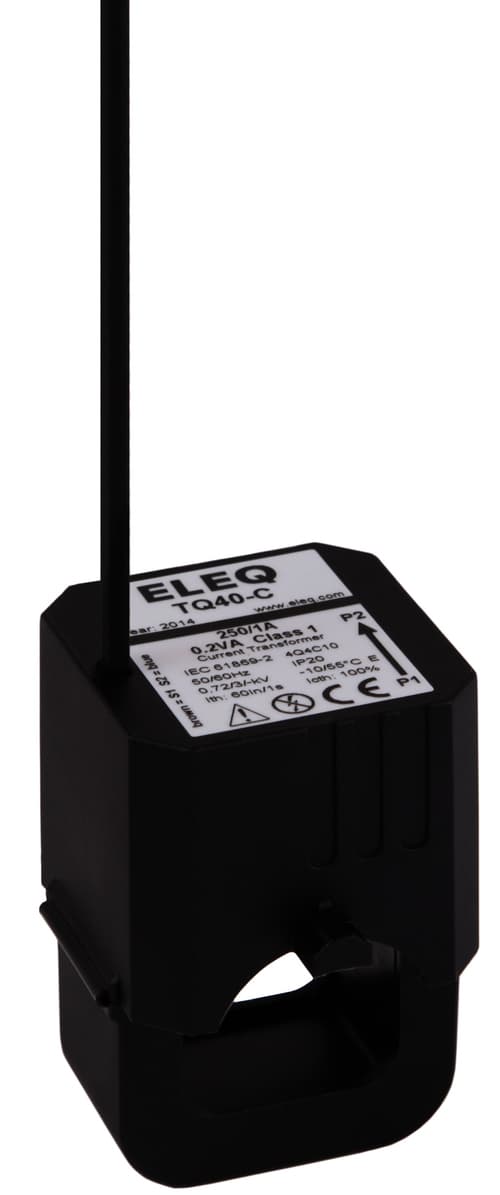

The very compact ELEQ TQ40-C split-core current transformer is especially designed for connection to digital measurement systems.

Ratio:250/5A .. 500/5A
Class:1
Burden:1VA
ø 28TQ40-C ../5A

Order specification

BurdenRatioClassEAN CodeArticle number
1VA250/5A187164790423504Q4C60
1VA300/5A187164790423674Q4C61
1VA400/5A187164790423744Q4C62
1VA500/5A187164790423814Q4C63

General technical specifications

This product is designed to be safe under the following conditions:

Environmental conditions

LocationIndoor use
Protection degree (secondary terminal)IP20
Only suitable for insulated conductors.

Application conditions

StandardIEC 61869-2
Rated short-time thermal current (Ith)60 x Ipr / 1s
Continuous thermal current (Icth)1
Rated insulation level0,72/3/-kV
Rated frequency50/60Hz
Class of insulationE (120°C)
Primary window dimensions (mm)ø 28
Secondary leads0,5 meter cable, 1,5 mm2 flexible
Overvoltage categoryCAT IV 600 V
