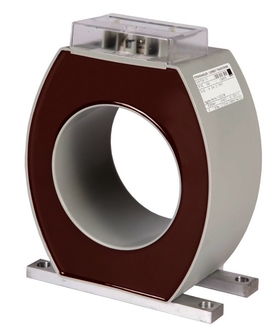

SVA170B110

Cast-resin Current Transformer

The SVA170 is specially designed for application in medium voltage installations as Ring Main Units.

Ratio:100/1A
Class:10P10
Burden:2VA
Ø 110SVA170B110

Order specification

BurdenModelRatioClassArticle number
2VASVA170B110100/1A10P10106532

General technical specifications

This product is designed to be safe under the following conditions:

Environmental conditions

LocationIndoor use
Ambient air temperature-5°C .. +40°C
Relative humidity5% .. 85%, non condensing
Protection degree IP20

Application conditions

StandardIEC 61869-2
Rated short-time thermal current (Ith)60 x In/1s
Continuous thermal current (Icth)1
Rated insulation level0,72/3/-kV
Rated frequency50/60Hz
Class of insulationE
Primary window dimensions (mm)Ø 110 mm
Primary current30-1000A
Secondary terminalScrew terminals (max. 2Nm). Wire diameter max. 6mm² solid max 4mm² stranded
On request are other specifications for measuring and protection classes possible. Also multi-core and multi ratio types can be made on request.
SVA170B110

Downloads for SVA170B110

1Downloads available
Product sheet SVA170B110 (pdf)
