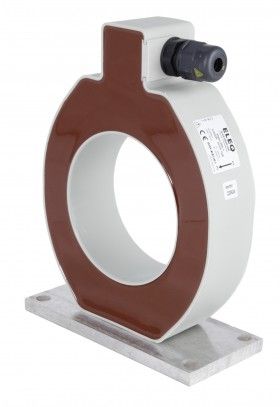

SVA160A100
Cast-resin current transformer for earth fault detection
One-piece cast-resin CT suitable to put on cable or cable bushing: Type SVA for earth fault detection.
Ratio:60/1A or 100/1A
Class:Special for directed Earth fault
Burden:2,5VA
Ø 100
General technical specifications
This product is designed to be safe under the following conditions:
Environmental conditions
LocationIndoor use
Ambient air temperature-10°C .. +55°C
Protection degree IP54
Application conditions
StandardIEC 61869-2
Rated short-time thermal current (Ith)Max. 60 kA/1s
Rated insulation level0,72/3/-kV
Rated frequency50/60Hz
Class of insulationE
Primary window dimensions (mm)Max Ø 100 mm
