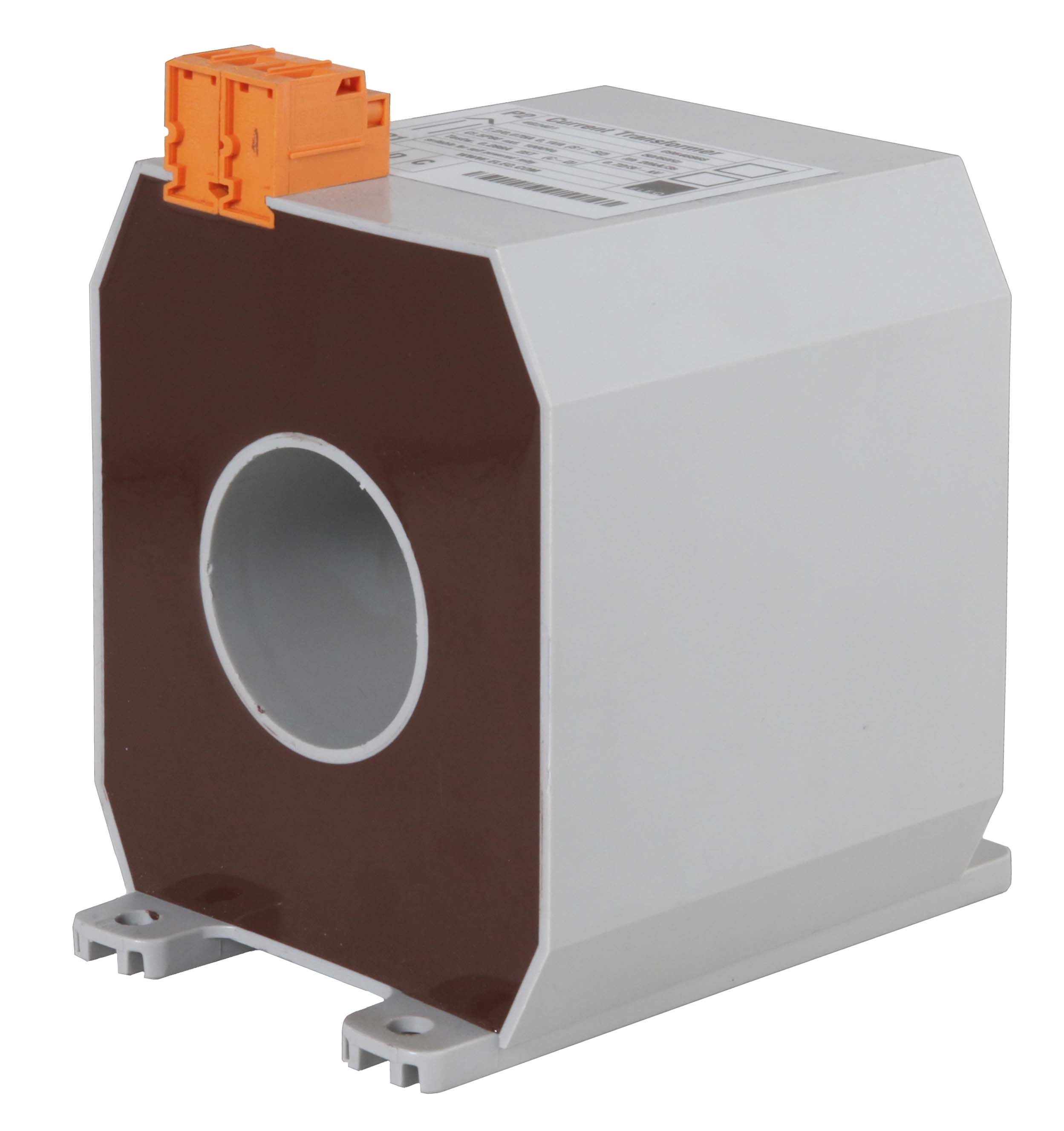

SVA100 P-classes
Switchgear transformer
The SVA100 is specially designed for application in medium voltage installations as RMU’s.
Ratio:50/5A .. 600/5A and 50/1A .. 600/1A
Class:5P10 or 10P10
Burden:1,5 .. 6VA
Max Ø 45
Order specification
| Burden | Model | Ratio | Class | Article number |
|---|---|---|---|---|
| 4VA | SVA100 P-classes | 150/1A | 5P10 | 4SV974 |
| 4-7VA | SVA100 P-classes | 100-200/1A | 5P10 | 4SV981 |
| 4-7VA | SVA100 P-classes | 200-400/1A | 5P10 | 4SV982 |
| 4-7VA | SVA100 P-classes | 400-600/1A | 5P10 | 4SV983 |
| 4-7VA | SVA100 P-classes | 300-600/1A | 5P10 | 4SV984 |
| 1,5-3-6VA | SVA100 P-classes | 50-100-200/1A | 10P10 | 4SV989 |
General technical specifications
This product is designed to be safe under the following conditions:
Environmental conditions
LocationIndoor use
Application conditions
StandardIEC 61869-2
Rated frequency50/60Hz
Class of insulationE
Primary window dimensions (mm)Max Ø 45
Secondary leads6mm2 solid / 4mm2 strand
