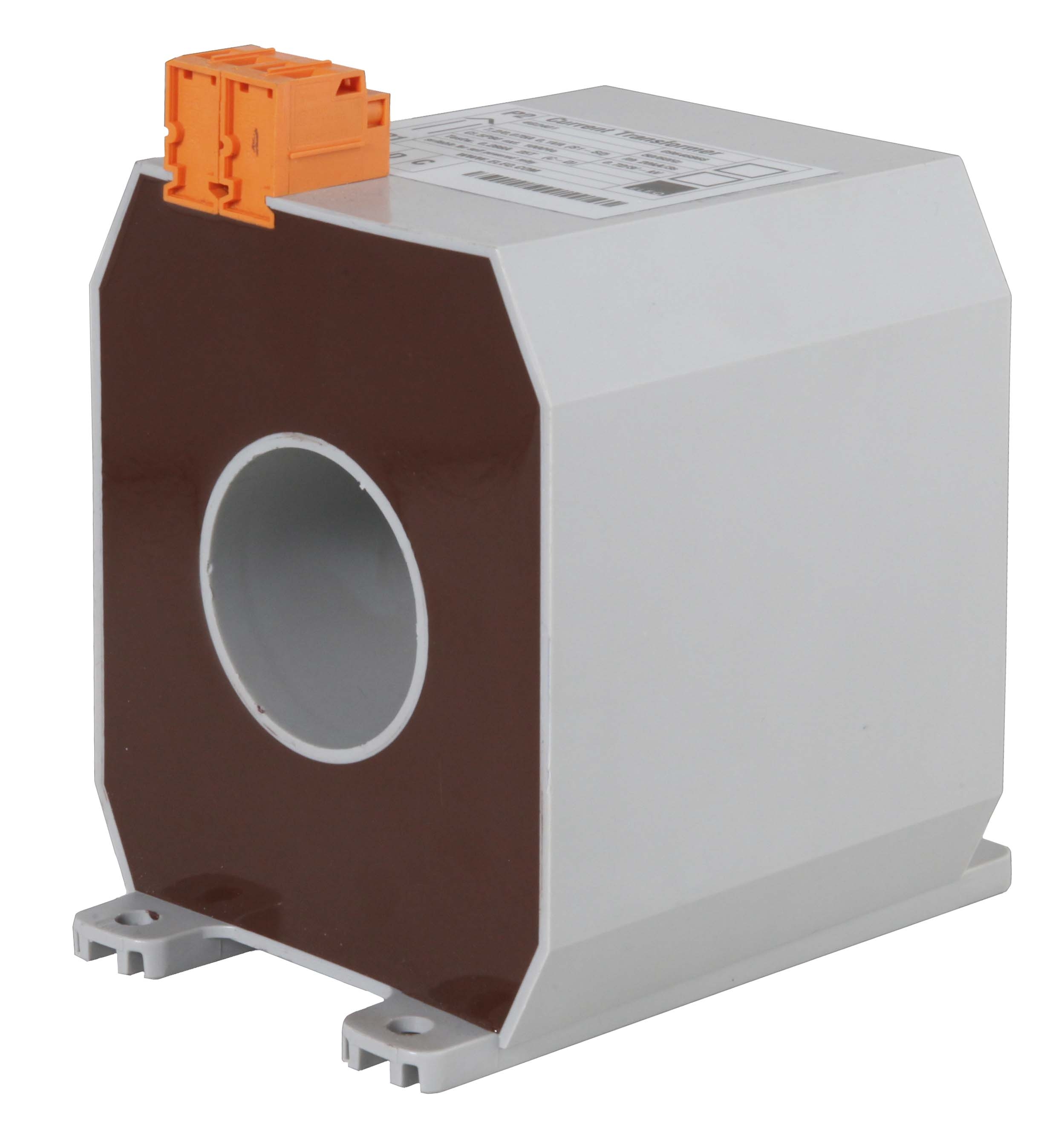

SVA100
Current Transformer for Self Powered Relay
The low power switchgear current transformers in SVA100 housing is specially designed for application in medium voltage installations as Ring Main Units (RMU).
Class:5P80, 10P80
Burden:Contact ELEQ for details
Max. Ø 50
Order specification
| Burden | Model | Current Range | Cable diameter | Class | Article number |
|---|---|---|---|---|---|
| Contact ELEQ for details | SVA100 | 16-56A | 50mm | 10P80 | 4G2201N |
| Contact ELEQ for details | SVA100 | 32-112A | 50mm | 5P80 | 4G2202N |
| Contact ELEQ for details | SVA100 | 64-224A | 50mm | 5P80 | 4G2203N |
| Contact ELEQ for details | SVA100 | 128-448A | 50mm | 5P80 | 4G2204N |
| Contact ELEQ for details | SVA100 | 16-56A | 50mm | 5P80 | 4G2205N |
| Contact ELEQ for details | SVA100 | 8-32A | 45mm | 5P80 | 4G2401 |
| Contact ELEQ for details | SVA100 | 256-896A | 50mm | 5P80 | 6G2200* |
General technical specifications
This product is designed to be safe under the following conditions:
Environmental conditions
LocationIndoor use
Ambient air temperature-10°C .. 55°C
Protection degree IP20
Application conditions
MaterialPU & PA6.6
Test winding0,288A nom
Rated frequency50/60Hz
Class of insulationE (120°C)
Primary window dimensions (mm)Ø 50 mm
Primary current8-896A
Secondary terminal6mm² solid / 4mm² stranded. Screw connection
