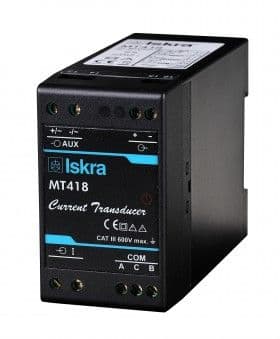

MT418
Universal Measurement Transducer
The MT418 is a freely programmable measurement transducer for measuring and monitoring RMS AC voltage.
Nominal current:1A of 5A (12A max)
Current Output:4-20mA
Auxiliary supply:AC (40-276Vac) or DC (24-300Vdc)
Order specification
| Auxiliary supply | Measuring range | Article number |
|---|---|---|
| AC (40-276Vac) or DC (24-300Vdc) | 0-1A | 2R2501 |
| AC (40-276Vac) or DC (24-300Vdc) | 0-5A | 2R2502 |
| AC (40-276Vac) or DC (24-300Vdc) | On customer request (max 12A) | 2R2599 |
General technical specifications
This product is designed to be safe under the following conditions:
Environmental conditions
LocationIndoor use
Power consumption0,2VA
Nominal frequency50/60, 400Hz
Overload1,2xIn continue 60xIn / 1 second
Accuracy class0.5 (IEC 60688)
Current Output4-20mA
Response time<100ms 0-90% & 100-10%
