Max. ø60

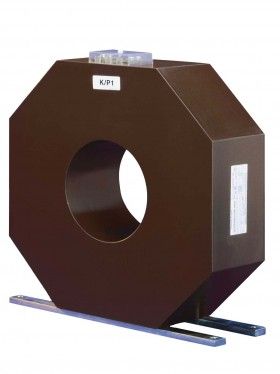

Cast Resin Current Transformer
GSA100
The GSA100 is a cast-resin insulated bushing-type current transformer for indoor applications. They are suitable to put on cables or bus-bars.
30 .. 1000A
1A or 5A, other options available on request
As required. For example 0,2, 5P20
We never go for the simplest solution, but for the best solution, for you, as a customer. Please contact me for the best solution for you.
Wim van Turennout, Key Account Manager
+31 (0)6 2039 5494
Order specifications
For the customized design of your ELEQ GSA transformer the following information is required:
Mandatory
• Rated primary current
• Rated secondary current
• Rated output
• Accuracy class
• Frequency
Optional
• Multi-core transformers
• Terminal box sealable
• Other relevant requirements
General Technical Specifications
This product is designed to be safe under the following conditions:
Environmental conditions
Indoor use
-5°C .. +40°C, other temperatures on request
5% .. 95%, non condensing
Application conditions
IEC 61869-2/IEEE C57.13, etc.
100 x In/1s, max. 100kA/1s, other duration on request
2,5 x Ith
1,2/6/-kV
50/60Hz
As required. For example 10 or 15VA
Screw terminals M5 (max. 2,5Nm)
