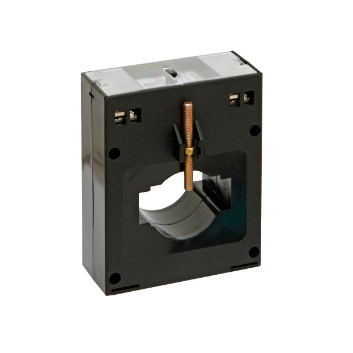

ERM70-E4A ../1A
Low voltage current transformer
Flexible, compact and reliable, those are the keywords of the (E)RM-series of ELEQ. All transformers are equipped with a sealable integrated terminal cover in a case of polycarbonate.
Ratio:600/5A .. 800/5A
Class:0,5 or 1 or Fs5
Burden:5 - 10VA
Ø 30
Order specification
| Burden | Ratio | Class 0,5 | Class 1 | Fs5 at | Article number |
|---|---|---|---|---|---|
| 5 - 10VA | 600/1A | -- | 5 VA | 7,5 VA | 4M3412E |
| 5 - 10VA | 750/1A | 5 VA | 7,5 VA | 10 VA | 4M3413E |
| 5 - 10VA | 800/1A | 5 VA | 7,5 VA | 10 VA | 4M3414E |
General technical specifications
This product is designed to be safe under the following conditions:
Environmental conditions
LocationIndoor use
Ambient air temperature-5°C .. +40°C
Relative humidity5% .. 85%, non condensing
Protection degree IP20
Application conditions
StandardIEC 61869-2
Rated short-time thermal current (Ith)60 x In / 1s
Continuous thermal current (Icth)1 x In
Rated insulation level0,72/3/-kV
Rated frequency50/60Hz
Class of insulationE
Primary window dimensions (mm)Max cable Ø 30 mm. Max rail 40x10(13)mm or 30x10(17,5)mm
Secondary leadsScrew terminals (max. torque 2Nm). Max. cross-sectional area of cable (stranded) 6mm2
