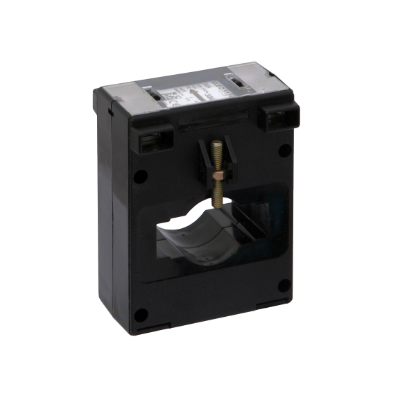

ERM60-E4A ../5A
Low voltage current transformer
Flexible, compact and reliable, those are the keywords of the (E)RM-series of ELEQ. All transformers are equipped with a sealable integrated terminal cover in a case of polycarbonate.
Ratio:250/5A .. 600/5A
Class:0,5 or 1 or 3
Burden:2,5 - 10VA
ø 24,7
Order specification
| Burden | Ratio | Class 0,5 | Class 1 | Class 3 | Article number |
|---|---|---|---|---|---|
| 2,5 - 10VA | 250/5A | -- | 2,5 VA | 5 VA | 4M2701E |
| 2,5 - 10VA | 300/5A | -- | 5 VA | -- | 4M2702E |
| 2,5 - 10VA | 400/5A | 3 VA | 4 VA | 5 VA | 4M2703E |
| 2,5 - 10VA | 500/5A | 4 VA | 5 VA | 7,5 VA | 4M2704E |
| 2,5 - 10VA | 600/5A | 5 VA | 7,5 VA | 10 VA | 4M2705E |
General technical specifications
This product is designed to be safe under the following conditions:
Environmental conditions
LocationIndoor use
Ambient air temperature-5°C .. +40°C
Relative humidity5% .. 85%, non condensing
Protection degree IP20
Application conditions
StandardIEC 61869-2
Rated short-time thermal current (Ith)60 x In / 1s
Continuous thermal current (Icth)1 x In
Rated insulation level0,72/3/-kV
Rated frequency50/60Hz
Class of insulationE
Primary window dimensions (mm)Max cable Ø 24,7 mm. Max rail 30x10(14)mm or 40x10mm
Secondary leadsScrew terminals (max. torque 2Nm). Max. cross-sectional area of cable (stranded) 6mm2
