ERM60-E2A ../5A
Low voltage current transformer

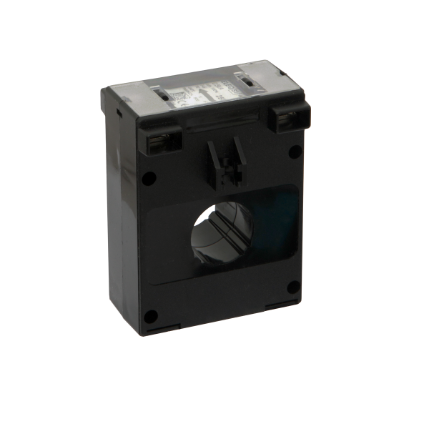

Flexible, compact and reliable, those are the keywords of the (E)RM-series of ELEQ. All transformers are equipped with a sealable integrated terminal cover in a case of polycarbonate.
Ratio:25/5A .. 400/5A
Class:0,5 or 1 or 3
Burden:0,5 - 12,5VA
ø 22,7
Order specification
| Burden | Ratio | Class 0,5 | Class 1 | Class 3 | Article number |
|---|---|---|---|---|---|
| 0,5 - 12,5VA | 50/5A | -- | -- | 1,5 VA | 4M2101E |
| 0,5 - 12,5VA | 60/5A | -- | -- | 2 VA | 4M2102E |
| 0,5 - 12,5VA | 75/5A | -- | 2 VA | 3 VA | 4M2103E |
| 0,5 - 12,5VA | 80/5A | -- | 2 VA | 3 VA | 4M2104E |
| 0,5 - 12,5VA | 100/5A | 1,5 VA | 3 VA | 4 VA | 4M2105E |
| 0,5 - 12,5VA | 120/5A | 2 VA | 3 VA | 5 VA | 4M2106E |
| 0,5 - 12,5VA | 125/5A | 2 VA | 3 VA | 5 VA | 4M2107E |
| 0,5 - 12,5VA | 150/5A | 2 VA | 3 VA | 5 VA | 4M2108E |
| Burden | Ratio | Class 0,5 | Class 1 | Class 3 | Article number |
|---|---|---|---|---|---|
| 0,5 - 12,5VA | 200/5A | 4 VA | 5 VA | 7,5 VA | 4M2109E |
| 0,5 - 12,5VA | 250/5A | 4 VA | 7,5 VA | 10 VA | 4M2110E |
| 0,5 - 12,5VA | 300/5A | 7,5 VA | 10 VA | 12,5 VA | 4M2111E |
| 0,5 - 12,5VA | 400/5A | 5 VA | 7,5 VA | 10 VA | 4M2112E |
| 0,5 - 12,5VA | 25/5A | -- | -- | 0,5 VA | 4M2128E |
| 0,5 - 12,5VA | 30/5A | -- | -- | 0,8 VA | 4M2129E |
| 0,5 - 12,5VA | 40/5A | -- | -- | 1,2 VA | 4M2130E |
General technical specifications
This product is designed to be safe under the following conditions:
Environmental conditions
LocationIndoor use
Ambient air temperature-5°C .. +40°C
Relative humidity5% .. 85%, non condensing
Protection degree IP20
Application conditions
StandardIEC 61869-2
Rated short-time thermal current (Ith)60 x In / 1s
Continuous thermal current (Icth)1 x In
Rated insulation level0,72/3/-kV
Rated frequency50/60Hz
Class of insulationE
Primary window dimensions (mm)Max cable Ø 22,7 mm. Max rail 15x10(15)mm or 20x10mm
Secondary leadsScrew terminals (max. torque 2Nm). Max. cross-sectional area of cable (stranded) 6mm2
