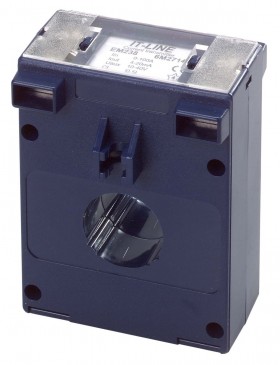

EM238

Intelligent Current Transformer

The ELEQ EM238 is a two-wire transmitter for converting alternating current to a 4-20mA signal. The auxiliary supply of 10-40Vdc is included in the output circuit.

Primay current:Max. 600A
Output:4-20mA
Auxiliary supply:10-40Vdc
ø 22,7EM238

Order specification

Auxiliary supplyMeasuring CurrentHousingArticle number
10-40Vdc10AB6M2701
10-40Vdc12AB6M2702
10-40Vdc12,5AB6M2703
10-40Vdc15AB6M2704
10-40Vdc16AB6M2705
10-40Vdc20AB6M2706
10-40Vdc25AB6M2707
10-40Vdc30AB6M2708
10-40Vdc40AB6M2709
10-40Vdc50AB6M2710
10-40Vdc60AB6M2711
10-40Vdc75AB6M2712
Auxiliary supplyMeasuring CurrentHousingArticle number
10-40Vdc80AB6M2713
10-40Vdc100AC6M2714
10-40Vdc120AC6M2715
10-40Vdc125AC6M2716
10-40Vdc150AC6M2717
10-40Vdc160AC6M2718
10-40Vdc200AC6M2719
10-40Vdc250AC6M2720
10-40Vdc300AC6M2721
10-40Vdc400AC6M2722
10-40Vdc500AD6M2723
10-40Vdc600AD6M2724

General technical specifications

This product is designed to be safe under the following conditions:

Environmental conditions

LocationIndoor use
Classe0212In0.5
Power consumption< 0,5VA

Application conditions

Range0 - 1,2In
Overload capacity60*In (1sec)
Continually1,2*In
Frequency range45-65Hz
EM238

Downloads for EM238

1Downloads available
Product sheet EM238 (pdf)
