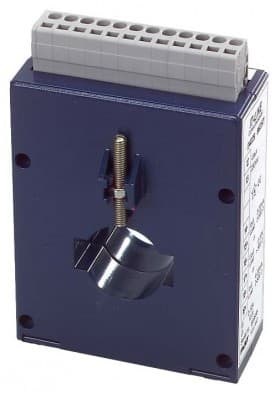

EM229
Intelligent Current Transducer
The ELEQ EM229 is an active current transducer for converting an alternating current of up to 250A to a 4-20mA, 0-20mA of 0-10V signal.
Primay current:Max. 250A
Output:4-20mA and 0-20mA and 0-10V
Auxiliary supply:230Vac
ø 24,5
Order specification
| Auxiliary supply | Measuring Current | Article number |
|---|---|---|
| 230Vac | 10A | 6M2501 |
| 230Vac | 12A | 6M2502 |
| 230Vac | 12,5A | 6M2503 |
| 230Vac | 15A | 6M2504 |
| 230Vac | 16A | 6M2505 |
| 230Vac | 20A | 6M2506 |
| 230Vac | 25A | 6M2507 |
| 230Vac | 30A | 6M2508 |
| 230Vac | 40A | 6M2509 |
| 230Vac | 50A | 6M2510 |
| Auxiliary supply | Measuring Current | Article number |
|---|---|---|
| 230Vac | 60A | 6M2511 |
| 230Vac | 75A | 6M2512 |
| 230Vac | 80A | 6M2513 |
| 230Vac | 100A | 6M2514 |
| 230Vac | 120A | 6M2515 |
| 230Vac | 125A | 6M2516 |
| 230Vac | 150A | 6M2517 |
| 230Vac | 160A | 6M2518 |
| 230Vac | 200A | 6M2519 |
| 230Vac | 250A | 6M2520 |
General technical specifications
This product is designed to be safe under the following conditions:
Environmental conditions
LocationIndoor use
Class0212In0.5
Power consumption< 2VA
Application conditions
Range0 - 1,2In
Overload capacity60*In (1sec)
Continually1,2*In
Frequency range45-65Hz
