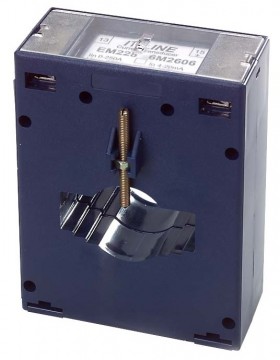

EM228
Intelligent Current Transducer
The ELEQ EM228 is an active current transducer for converting an alternating current of up to 1250A to an 4-20mA (standard), 0-20mA or 0-10V signal.
Primay current:Max. 1250A
Output:4-20mA, 0-20mA and 0-10V (on request)
Auxiliary supply:230Vac
ø 24,5
Order specification
| Auxiliary supply | Measuring Current | Article number |
|---|---|---|
| 230Vac | 100A | 6M2601 |
| 230Vac | 120A | 6M2602 |
| 230Vac | 125A | 6M2603 |
| 230Vac | 150A | 6M2604 |
| 230Vac | 200A | 6M2605 |
| 230Vac | 250A | 6M2606 |
| 230Vac | 300A | 6M2607 |
| 230Vac | 400A | 6M2608 |
| Auxiliary supply | Measuring Current | Article number |
|---|---|---|
| 230Vac | 500A | 6M2609 |
| 230Vac | 600A | 6M2610 |
| 230Vac | 750A | 6M2611 |
| 230Vac | 800A | 6M2612 |
| 230Vac | 1000A | 6M2613 |
| 230Vac | 1200A | 6M2614 |
| 230Vac | 1250A | 6M2615 |
| 230Vac | 160A | 6M2616 |
General technical specifications
This product is designed to be safe under the following conditions:
Environmental conditions
LocationIndoor use
Class0212In0.5
Power consumption< 2VA
Application conditions
Range0 - 1,2 In
Overload capacity60*In (1sec)
Continually1,2*In
Frequency range45-65Hz
