5L8208

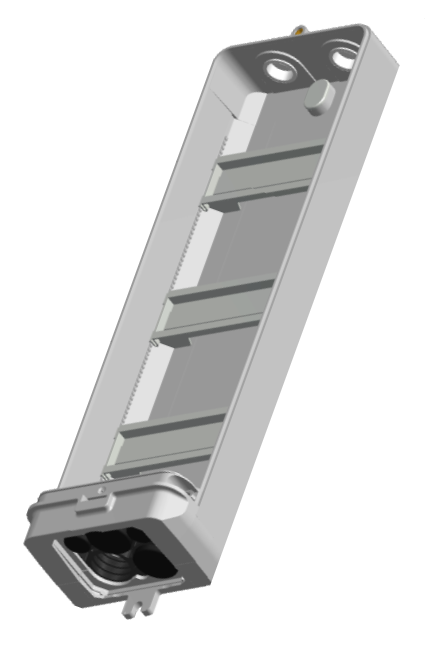

Connection Box
An extended and widened connection box, offering maximum interior space and still fitting behind a 400-millimetre door. Ideal for outdoor use: For mounting in lamp posts and facade connections. Flexible rail systems allow it to be supplied with additional components.
Fuses: 2x Tube fuse, 4A, linked
Maximum per terminal: 2x 16 mm²
Details:IP44, IK10
ø 135
General technical specifications
This product is designed to be safe under the following conditions:
ModelLS-135
Suitable for minimum mast diameter138 mm
Fuses includedNo
Number of terminals5 pieces; 3x phase, 1x zero, 1x Earth
Maximum connection per terminal 2x 16 mm²
Number of cable cores5
Earth-neutral connectionNo
DetailsIP44, IK10
