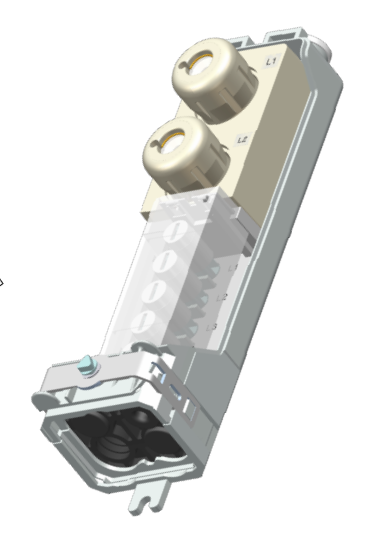

5L8020

Connection Box

For grids with double insulation. Extra strong connection box suitable for installation in a stainless steel box, in a lamppost and for outdoor installation.

Fuses:x
Maximum per terminal:2 cables (5 x 16 mm2) or 3 cables (5 x 10mm2)
Details:Double insulated
ø 1005L8020

General technical specifications

This product is designed to be safe under the following conditions:

ModelLS-100
Suitable for minimum mast diameter100mm
Number of fuses2
Fuses included2x 6A
Fuse typeE27/DII
Number of terminals5 pieces; 3x phase, 1x zero, 1x Earth
Maximum connection per terminal2 cables (2 cores x 16mm2) or 3 cables (3 cores x 10mm2)

Number of cable cores5
Earth-neutral connectionNo
Phase selectableNo
Double insulatedYes
DetailsDouble insulated
Automatic earthingNo
5L8020

Downloads for 5L8020

3Downloads available
Product sheet 5L8020(pdf)
3D-drawing LS-100 (.stp)
CE certificate LS-100
