5L6018A

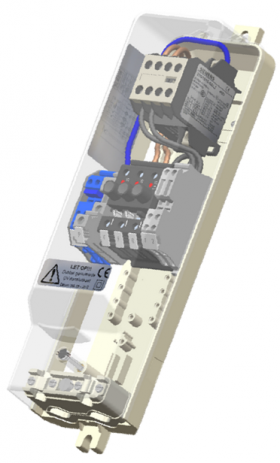

Connection Box

For grids with double insulation. Extra strong connection box suitable for the installation of various DIN rail components.

Fuses:3 x 5x25
Maximum per terminal:1 cable (3 x 16 mm2) or 2 cables (1 x 6mm2) or 2 cables (1 x 10mm2)
Details:Double insulated
ø 995L6018A

General technical specifications

This product is designed to be safe under the following conditions:

ModelLS-99
Suitable for minimum mast diameter99mm
Number of fuses3
Fuses included2x 2A, 1x 10A
Fuse type10*38
Number of terminals/
Maximum connection per terminal1 cable (1 core x 16mm2) or 2 cables (2 core x 6mm2) or 2 cables (2 core x 10mm2)

Number of cable cores3, 1, 1
Earth-neutral connectionNo
Phase selectableNo
Double insulatedYes
DetailsDouble insulated
Automatic earthingNo
5L6018A

Downloads for 5L6018A

3Downloads available
Product sheet 5L6018A(pdf)
Installation Instruction 5L6018A (pdf)
3D-drawing LS-99 double insulated (.stp)
