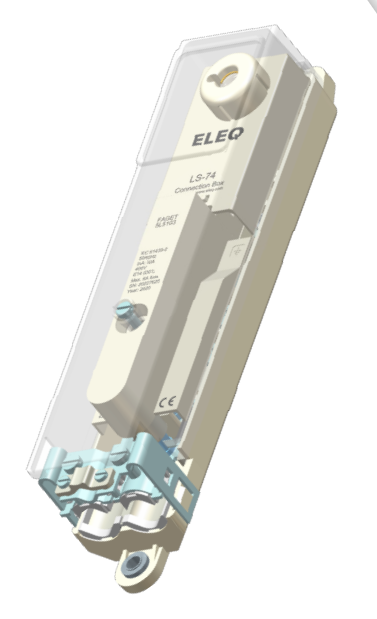

5L5103

Connection Box

Narrow connection box suitable for mounting in thin lampposts.

Fuses:1 x E14/D01
Maximum per terminal:1 cable (5 x 10 mm2) or 2 cables (5 x 6mm2)
Details:For small lighting poles
ø 745L5103

General technical specifications

This product is designed to be safe under the following conditions:

ModelLS-74
Suitable for minimum mast diameter74mm
Number of fuses1
Fuses included1x 6A
Fuse typeE14/D01
Number of terminals5 pieces; 3x phase, 1x zero, 1x Earth
Maximum connection per terminal1 cable (1 core x 10mm2) or 2 cables (2 core x 6mm2)

Number of cable cores5
Earth-neutral connectionNo
Phase selectableNo
Double insulatedNo
DetailsFor small lighting poles
Automatic earthingYes
5L5103

Downloads for 5L5103

2Downloads available
Product sheet 5L5103 (pdf)
Installation Instruction 5L5xxx (pdf)
