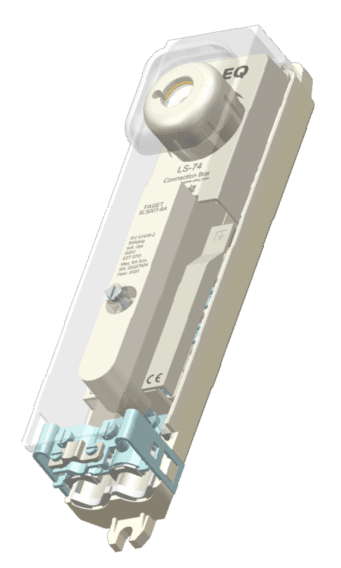

5L5001

Connection Box

Narrow connection box suitable for mounting in thin lampposts.

Fuses:1 x E27/DII
Maximum per terminal:1 x 10 mm² or 2 x 6 mm2
Details:For small lighting poles
ø 785L5001

General technical specifications

This product is designed to be safe under the following conditions:

ModelLS-74
Suitable for minimum mast diameter74 mm
Number of fuses1
Fuses includedNo
Fuse typeE27/DII
Number of terminals5 pieces; 3x phase, 1x zero, 1x Earth
Maximum connection per terminal1 x 10 mm² or 2 x 6 mm2

Number of cable cores5
Earth-neutral connectionNo
Phase selectableNo
Double insulatedNo
DetailsFor small lighting poles
Automatic earthingNo
5L5001

Downloads for 5L5001

3Downloads available
Product sheet 5L5001(pdf)
Installation Instruction 5L5xxx (pdf)
3D-drawing LS-74 (.stp)
