5L4348

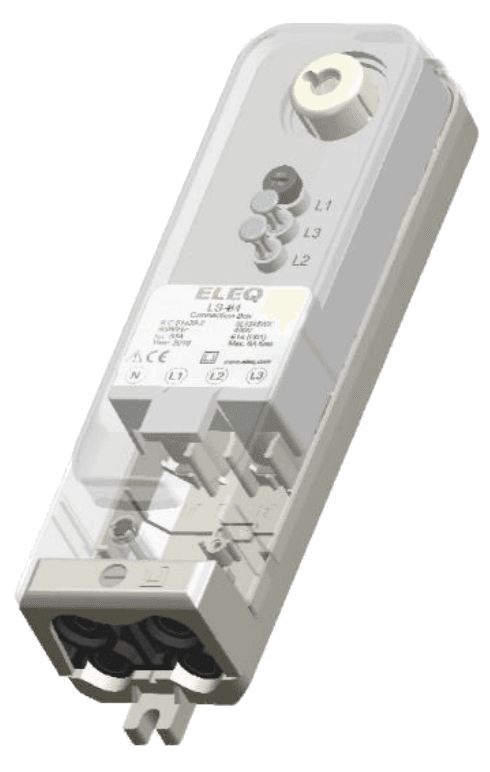

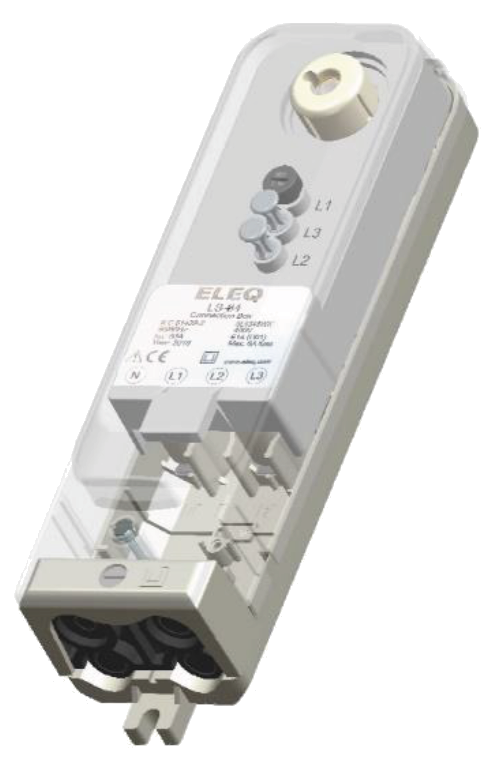

Connection Box

For grids with double insulation. Connection box with which the phases to be used can easily be reversed using a pin.

Fuses:1 x E14 (D01)
Maximum per terminal:2 cables (2 x 16 mm²)
Details:Double insulated
ø 845L4348

General technical specifications

This product is designed to be safe under the following conditions:

ModelLS-84
Suitable for minimum mast diameter84mm
Number of fuses1
Fuses included1x 6A
Fuse typeE14 (D01)
Number of terminals4 pieces; 3x phase, 1x neutral
Maximum connection per terminal2 cables (4 cores x 16mm²)

Number of cable cores4
Earth-neutral connectionNo
Phase selectableYes
Double insulatedYes
DetailsDouble insulated
Automatic earthingNo
5L4348

Downloads for 5L4348

1Downloads available
Product sheet 5L4348 (pdf)
