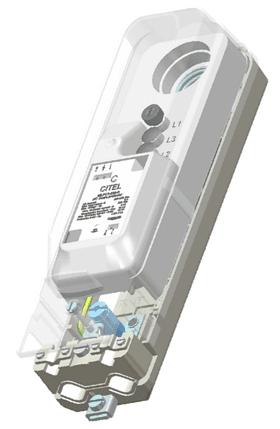

5L2411

Connection Box

With surge protection to extend the service life of the electronics in public areas.

Fuses:1 x E27/DII
Maximum per terminal:2 cables (5 x 10 mm2) or 3 cables (5 x 6mm2)
Details:Surge Protection
ø 945L2411

General technical specifications

This product is designed to be safe under the following conditions:

ModelLS-94
Suitable for minimum mast diameter94mm
Number of fuses1
Fuses includedNo
Fuse typeE27/DII
Number of terminals5 pieces; 3x phase, 1x zero, 1x Earth
Maximum connection per terminal2 cables (2 cores x 10mm2) or 3 cables (3 cores x 6mm2)

Number of cable cores5
Earth-neutral connectionNo
Phase selectableNo
Double insulatedNo
DetailsSurge Protection
Automatic earthingYes
5L2411

Downloads for 5L2411

4Downloads available
Product sheet 5L2411 (pdf)
CE certificate 5L2411
Installation Instruction 5L2411 (pdf)
3D-drawing LS-94 (.stp)
