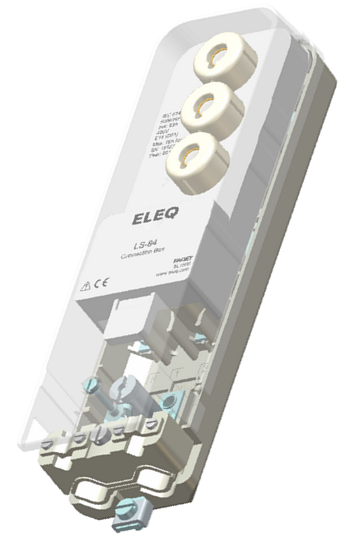

5L1508

Connection Box

Extra low connection box which can be used when less installation space is available.

Fuses:3 x E14/D01
Maximum per terminal:2 cables (5 x 16 mm2) or 3 cables (5 x 10mm2)
Details:Extra low connection box, namely 59 mm
ø 845L1508

General technical specifications

This product is designed to be safe under the following conditions:

ModelLS-84
Suitable for minimum mast diameter84mm
Number of fuses3
Fuses included3x 6A
Fuse typeE14/D01
Number of terminals5 pieces; 3x phase, 1x zero, 1x Earth
Maximum connection per terminal2 cables (5 cores x 16mm2) or 3 cables (5 cores x 10mm2)

Number of cable cores5
Earth-neutral connectionNo
Phase selectableNo
Double insulatedNo
DetailsExtra low connection box, namely 59 mm
Automatic earthingYes
5L1508

Downloads for 5L1508

3Downloads available
Product sheet 5L1508 (pdf)
Installation Instruction LS-84 (pdf)
3D-drawing LS-84 (.stp)
