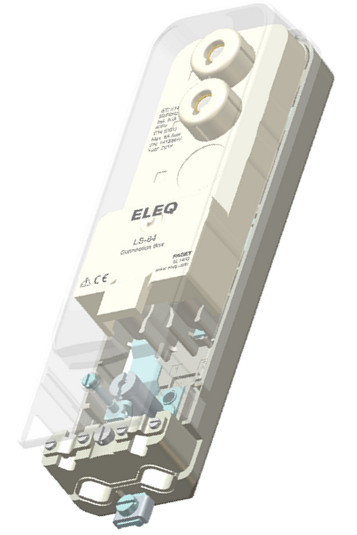

5L1403

Connection Box

Extra safe connection box in which the neutral can be quickly disconnected using a neutral separator in case of mains pollution.

Fuses:2 x E14/D0I
Maximum per terminal:2 cables (5 x 16 mm2)
Details:Neutral disconnector
ø 845L1403

General technical specifications

This product is designed to be safe under the following conditions:

ModelLS-84
Suitable for minimum mast diameter84mm
Number of fuses2
Fuses included2 x 6A
Fuse typeE14/D0I
Number of terminals5 pieces; 3x phase, 1x zero, 1x Earth
Maximum connection per terminal2 cables (5 cores x 16mm2)

Number of cable cores5
Earth-neutral connectionYes
Phase selectableNo
Double insulatedNo
DetailsNeutral disconnector
Automatic earthingYes
5L1403

Downloads for 5L1403

3Downloads available
Product sheet 5L1403 (pdf)
Installation Instruction LS-84 (pdf)
3D-drawing LS-84 (.stp)
