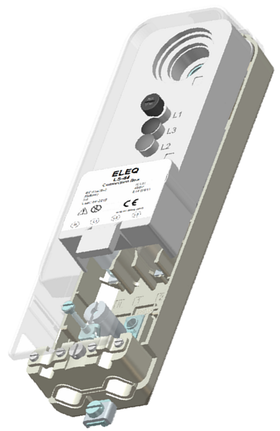

5L1301

Connection Box

Extra safe connection box in which the neutral can be quickly disconnected in case of mains pollution. Also, the phases are selectable.

Fuses:1 x E14/D01
Maximum per terminal:2 cables (5 x 16 mm2)
Details:Neutral disconnector
ø 845L1301

General technical specifications

This product is designed to be safe under the following conditions:

ModelLS-84
Suitable for minimum mast diameter84mm
Number of fuses1
Fuses includedNo
Fuse typeE14/D01
Number of terminals5 pieces; 3x phase, 1x zero, 1x Earth
Maximum connection per terminal2 cables (5 cores x 16mm2)

Number of cable cores5
Earth-neutral connectionNo
Phase selectableNo
Double insulatedNo
DetailsNeutral disconnector
Automatic earthingYes
5L1301

Downloads for 5L1301

3Downloads available
Product sheet 5L1301 (pdf)
Installation Instruction LS-84 (pdf)
3D-drawing LS-84 (.stp)
