ø 100
5L4146

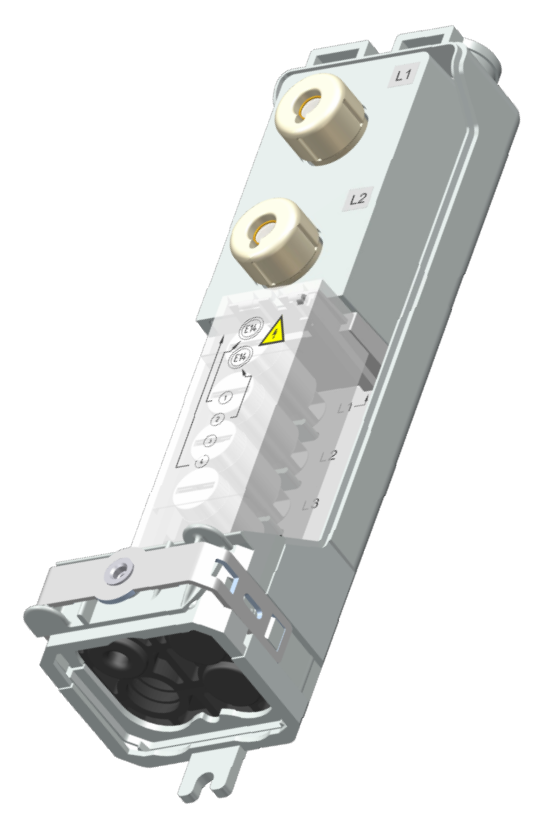

LS-100 5L4146
Connection box to be mounted on walls (IP55).
2x E14 Fuse (D01)
2 cables (2 x 25 mm²)
Cable gland M16 and reducing ring (M20/M16) are supplied separately.
“We are the international manufacturer of measuring, revenue metering and protection transformers for energy generation, energy transport and distribution, energy accounting and energy management. Please contact me for the best solution for you.”
Wim van Turennout, Key Account Manager
+31 (0)6 2039 5494
General Technical Specifications
This product is designed to be safe under the following conditions:
LS-100
100 mm
2
Yes, 2x 6A
E14 Fuse (D01)
4 pieces; 3x phase, 1x neutral
2 cables (4 cores x 25mm²)
IP55, IK10
4
No
No
Yes
Looping through
No
Complementary goods
The following products complement this products in its use.
-
LS-100 5L41452x E14 Fuse (D01)2 cables (2 x 16 mm²)Double insulated
-
2RVS31Stainless steel box to be mounted on the ground against the wall.1x LS-74, LS-84, LS-94, LS-99, 1x LS-100On the ground against the wall.Through bottom side
-
5L9950These pliers can be used to bend 16 mm2 wires without damage.Connection Box LS-74, LS-84, LS-94, LS-99, LS-100, LS-104, LS-110Bending cores without damaging
-
5L9970For the connection between the LS-100 connection box and 2 x 27 mm profile tubeConnection Box LS-100Transition between connection box and profile
-
5L9971For the connection between the LS-100 connection box and the omega profile 23 x 21 (type 1)Connection Box LS-100Transition between connection box and profile
-
5L9972For the connection between the LS-100 connection box and the omega profile 37x 26 (type 2)Connection Box LS-100Transition between connection box and profile
