ø 74
5L4144

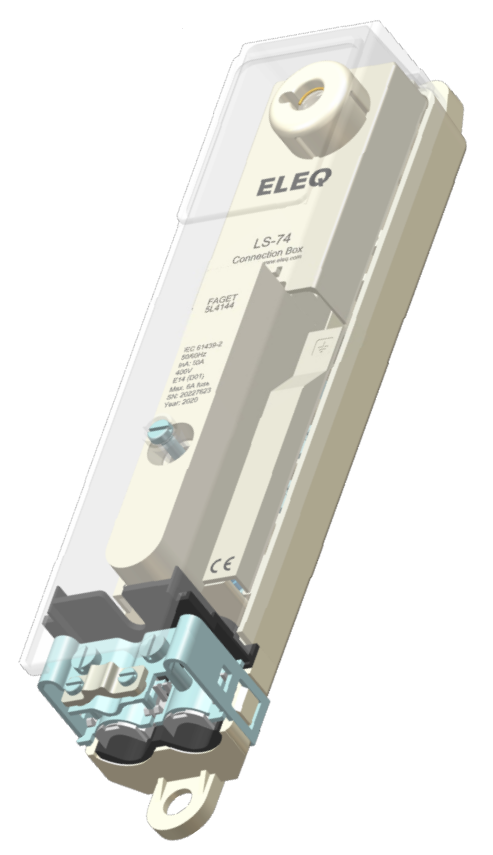

LS-74 5L4144
Connection box suitable for very small lightpoles.
1x E14 Fuse (D01)
2 cables (2 x 10 mm²)
Double insulated
“We manufacture products with passion and precision which proved their excellence over the years. I would be pleased to discuss our possibilities together.“
Aafje Heinhuis, Inside Sales
+31 (0)521 533 333
General Technical Specifications
This product is designed to be safe under the following conditions:
LS-74
74 mm
2
Yes, 1x 6A
E14 Fuse (D01)
4 pieces; 3x phase, 1x neutral
2 cables (4 cores x 10mm²)
4
No
No
Yes
No
Complementary goods
The following products complement this products in its use.
-
LS-74 5L5001Narrow connection box suitable for mounting in thin lampposts.1 x E27/DII1 x 10 mm² or 2 x 6 mm2For small lighting poles
-
LS-74 5L5001-6ANarrow connection box suitable for mounting in thin lampposts.1 x E27/DII1 x 10 mm² or 2 x 6 mm2For small lighting poles
-
LS-74 5L5103Narrow connection box suitable for mounting in thin lampposts.1 x E14/D011 cable (5 x 10 mm2) or 2 cables (5 x 6mm2)For small lighting poles
-
2RVS50Stainless steel box to be mounted in the wall.1x LS-74, LS-84, LS-94To be mounted in the wallTop 2x 25mm. Bottom tube 40 mm.
-
2RVS52Stainless steel box to be mounted in the wall.1x LS-74, LS-84, LS-94To be mounted in the wallTop 2x 22 mm. Bottom tube 40 mm.
